Hartte XSHD-C-series

Hartte XSHD-C-series
Download product card

Versatile fire-resistant electric strikes XSHD-series have CE certificate enabling application in all types of doors with classification EI60 according to Resolution CPR 305/2011 and the EU harmonized standard for electric strikes 14846.

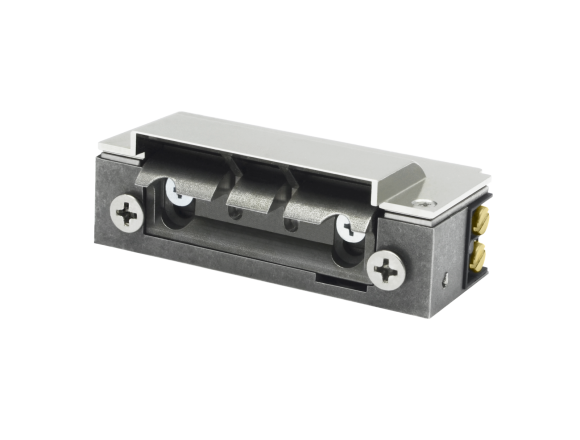

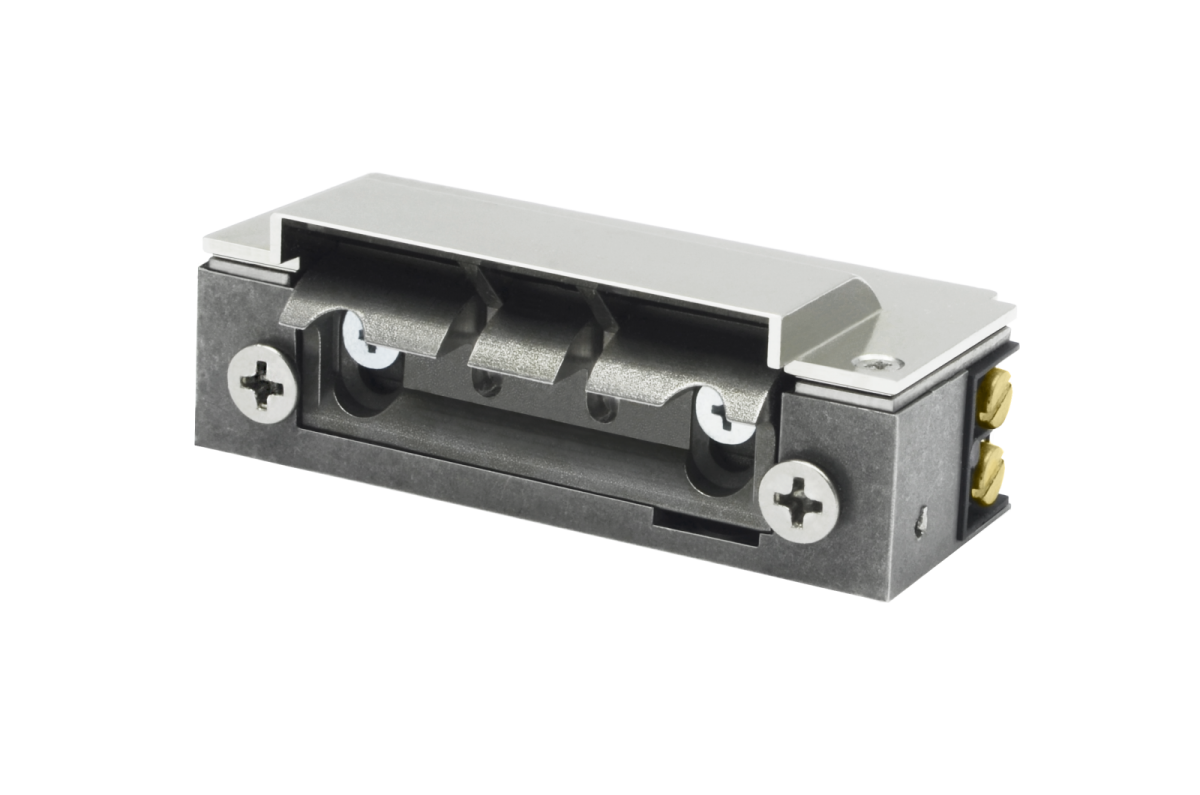

Models of XSHD-C have integrated latch bolt guide, which stands as slinding ramp for latch bolt, preventing damage of door frame and makes it impossible to block latch bolt. Latch bolt guide built-in simplify installation with no need of cut-out the door profile and hides the electric strike from the front side.

Narrow, fire protection electric strikes XSHD-C-series with built-in latch bolt have steel latch with radial shape(it's not outstanding of electric strike outline), adjustable in range of 3,5mm and symmetric housing, what speeds up and make installation easier in DIN-right and DIN-left doors. Moreover punching in door frame of fire-resistant doors is far more simplified.

Characteristic:

  • for doors with fire-rate EI60, and for steel doors with fire-resistant rate EI120
  • latch bolt guide built-in
  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing and radial latch

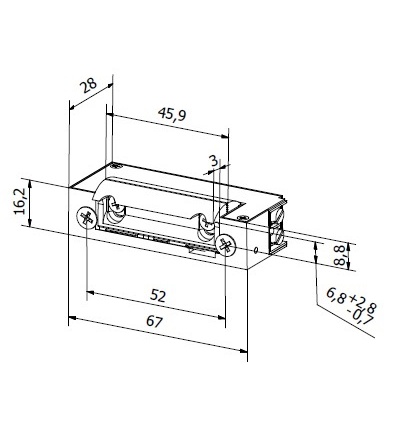

  • size: width 19 mm, height  67 mm, depth 28 mm,

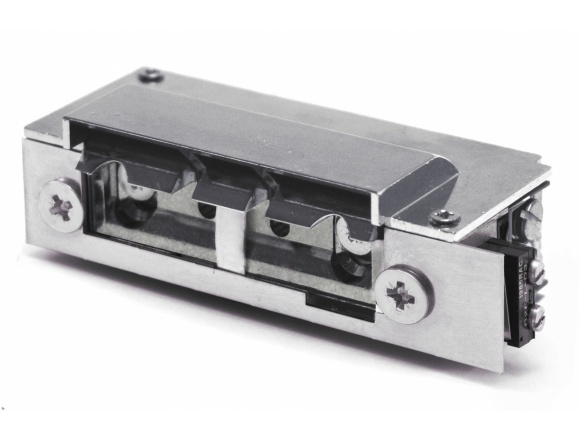

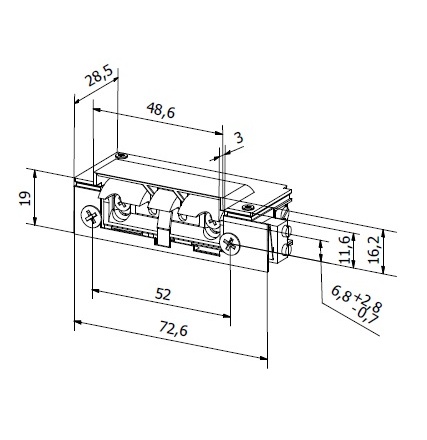

    size with door status monitoring: 19 mm x 72,6 mm x 28,5 mm
  • mechanical strenght – break-in resistance class 2
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors
  • latch adjustable in range of 3,5mm

Models of HARTTE XSHD-series:

  • normally closed
  • normally open (mounting on additional lock)
  • normally closed low consumption

Above models available also with door status monitoring (M) and/or varistor (V).



12-24V AC/DC

12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

XSHD00U-C

XSHD12U-C

XSHD12N-C

XSHD12R-C

XSHD24U-C

XSHD24N-C

XSHD24R-C

Voltage tolerance (V)

AC 10-26

DC 10-26

10-14

10-14

10-14

AC 21-26

DC 20-26

20-26

20-26

Resistance (Ohm)

46

17,6

60

60

60

230

230

Power consumption AC (mA)

12V 185

24V 370

480

-

-

280

-

-

Power consumption DC (mA)

12V 260

24V 520

680

200

200

400

100

100

Continuously powered (100%ED)

yes (12V DC)

no

yes

yes

no

yes

yes

Index Type Voltage Current Work type Functions Housing Latch
    06V 12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
XSHD00U-C low-consumption, for continously powered 12V DC               symmetric, narrow radial, adjustable
XSHD00UV-C low-consumption, for continously powered 12V DC             symmetric, narrow radial, adjustable
XSHD00UM-C low-consumption, for continously powered 12V DC             symmetric, narrow radial, adjustable
XSHD00UMV-C low-consumption, for continously powered 12V DC           symmetric, narrow radial, adjustable
XSHD12U-C standard                   symmetric, narrow radial, adjustable
XSHD12UV-C standard                 symmetric, narrow radial, adjustable
XSHD12N-C low-consumption                     symmetric, narrow radial, adjustable
XSHD12NV-C low-consumption                   symmetric, narrow radial, adjustable
XSHD12R-C NO                     symmetric, narrow radial, adjustable
XSHD12RV-C NO                   symmetric, narrow radial, adjustable
XSHD24U-C standard                   symmetric, narrow radial, adjustable
XSHD24UV-C standard                 symmetric, narrow radial, adjustable
XSHD24N-C low-consumption                     symmetric, narrow radial, adjustable
XSHD24NV-C low-consumption                   symmetric, narrow radial, adjustable
XSHD24R-C NO                     symmetric, narrow radial, adjustable
XSHD24RV-C NO                   symmetric, narrow radial, adjustable
XSHD12UM-C standard                 symmetric, narrow radial, adjustable
XSHD12UMV-C standard               symmetric, narrow radial, adjustable
XSHD12NM-C low-consumption                   symmetric, narrow radial, adjustable
XSHD12NMV-C low-consumption                 symmetric, narrow radial, adjustable
XSHD12RM-C NO                   symmetric, narrow radial, adjustable
XSHD12RMV-C NO                 symmetric, narrow radial, adjustable
XSHD24UM-C standard                 symmetric, narrow radial, adjustable
XSHD24UMV standard               symmetric, narrow radial, adjustable
XSHD24NM low-consumption                   symmetric, narrow radial, adjustable
XSHD24NMV low-consumption                 symmetric, narrow radial, adjustable
XSHD24RM NO                   symmetric, narrow radial, adjustable
XSHD24RMV NO                 symmetric, narrow radial, adjustable
