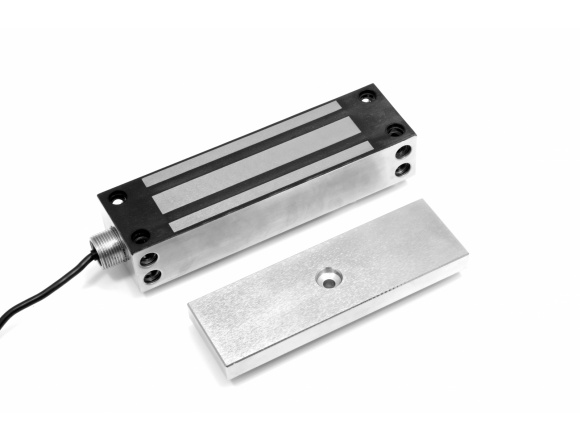

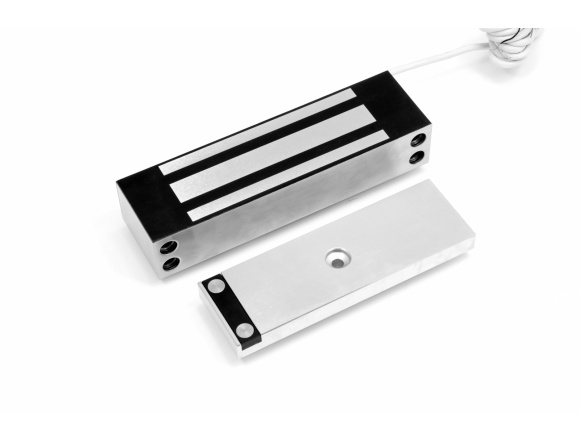

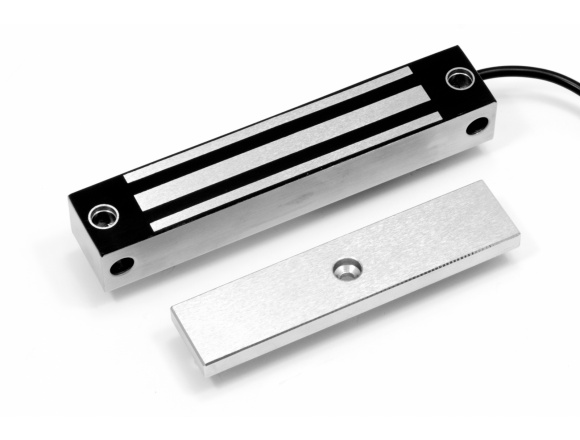

Hartte MSS-series
Electric maglocks MSS-series are recommended to external applications. They feature waterproof (IP67) and housing our of high-quality stainless steel (AISI 316). MSS-series have no residual magnetism, which means that when power is switched off, electromagnet is opened without delay and enable immediate opening of the doors. On the armature plate there is no so called “push-pin”, so electromagnet lock maintain its holding force for the long term.
Characteristic:
- fail-safe (NO)
- holding force from 2000N (200kg), 4100N (410kg) or 7500 N (750kg)
- no residual magnetism
- no push-pin moving armature plate awal from the maglock
- for surface (S) mounting
- MOV surge protection built-in
- resistant to corrosion and atmosphere conditions
- stainless steel housing AISI316
- waterproof IP67
| Index | MSS.200S | MSS.400SSR | MSS.400SFR | MSS.750SSR | MSS.750SFR | MSS.750SR | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Holding force (N) |
2000 |
4100 |
4100 |
7500 |
7500 |
7500 |
||||||||
|
Voltage (V) |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
||||||||
|
Power consumption (mA) |
400/200 |
400/200 |
400/200 |
500/250 |
500/250 |
500/250 |
||||||||
|
Dimmensions (mm) |
162x26x31 |
220x47x31 |
220x47x31 |
225x63x44 |
225x63x44 |
225x63x44 |
||||||||
|
Weight (kg) |
1,0 |
3,0 |
3,0 |
5.0 |
5,0 |
5,0 |
||||||||
|
Locking monitoring |
no |
no |
no |
yes |
yes |
yes |
||||||||
|
Door monitoring |
no |
no |
no |
no |
no |
no |
||||||||
|
Mounting |
surface |
surface |
surface |
surface |
surface |
surface |
||||||||
| Index | Voltage | Current | Work type | Holding force | Functions | Mounting | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12/24V | DC | NO | 200kg | 400kg | 750kg | Locking monitoring | Door status monitoring | Varistor | Waterproof | Surface | Mortise | |
| MSS.200S | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| MSS.400SSR | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| MSS.400SFR | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| MSS.750SSR | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| MSS.750SFR | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| MSS.750SR | ● | ● | ● | ● | ● | ● | ● | ● | ||||
|
Mounting bracket L |
For doors open outside:
|
 |
|
Mounting bracket ZL |
For doors opened inside:
|
 |
