Hartte MG300-series
Electromagnets MG300-series are the most universal maglocks for standard applications. MG300-seriesfeature no residual magnetism, which means that when power is switched off, the electromagnet is opened without delay and enables immediate opening of the doors. On the armature plate there is no so called “push-pin”, which cause damage to the electromagnet surface and influence its holding force. MG300-series is the most popular due to its small dimensions and weight as well as resistance to corrosion. Recommended to internal access control systems, alarm systems and time & attendance systems.
Characteristic:
- fail safe (NO)
- holding force 1800N (180kg) or 3000 N (300kg)
- no residual magnetism
- no push-pin moving armature plate awal from the maglock
- for surface (S) or mortise (M) mounting
- MOV surge protection built-in
- resistant to corrosion
Index |
MG300.180SR |

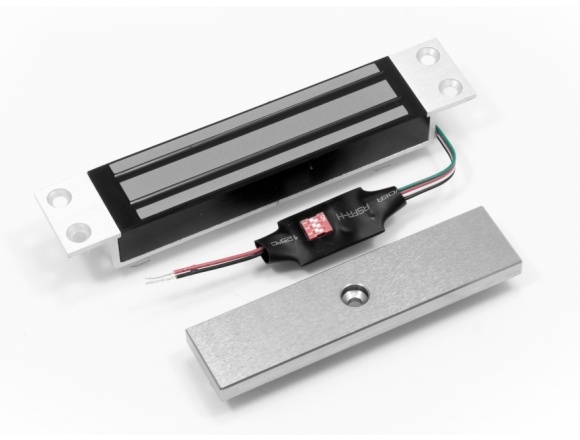

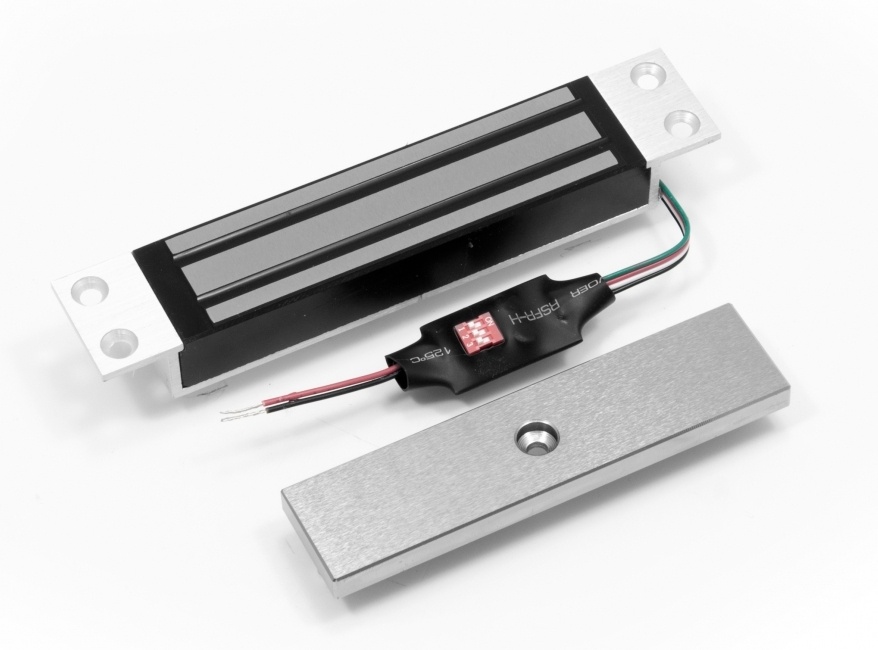

MG300.180MR |
MG300.300MR |

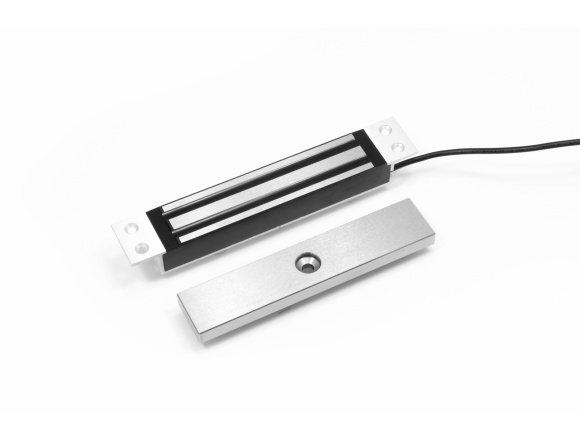

MG300.300M |
MG300.300SL |

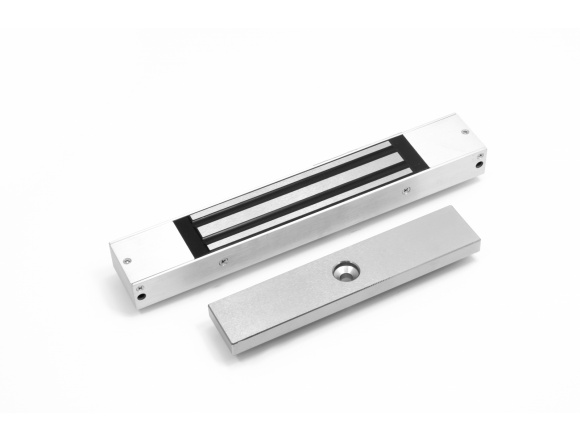

MG300.300S |
||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Holding force(N) |
1800 |
1800 |
3000 |
3000 |
3000 |
3000 |
||||||
Voltage (V) |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
12/24V DC |
||||||
Power consumption (mA) |
350/175 |
350/175 |
500/250 |
500/250 |
500/250 |
500/250 |
||||||
Dimmensions (mm) |
166x39x21 |
166x39x21 |
188x39x27 |
188x39x27 |
268x48x25 |
268x48x25 |
||||||
Weight (kg) |
1,8 |
1,8 |
2,0 |
2,0 |
2,0 |
2,0 |
||||||
Locking monitoring |
yes |
yes |
yes |
no |
yes(LED) |
no |
||||||
Door monitoring |
no |
no |
no |
no |
no |
no |
||||||
Mounting |
surface |
mortise |
mortise |
mortise |
surface |
surface |
Index | Voltage | Current | Work type | Holding force | Functions | Mounting | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
12/24V | DC | NO | 180kg | 300kg | Locking monitoring | Door status monitoring | Varistor | Waterproof | Surface | Mortise | |
MG300.180MR | ● | ● | ● | ● | ● | ● | ● | ||||
MG300.300MR | ● | ● | ● | ● | ● | ● | ● | ||||
MG300.300M | ● | ● | ● | ● | ● | ● | |||||
MG300.180SR | ● | ● | ● | ● | ● | ● | ● | ||||
MG300.300SL | ● | ● | ● | ● | ● | ● | ● | ||||
MG300.300S | ● | ● | ● | ● | ● | ● |

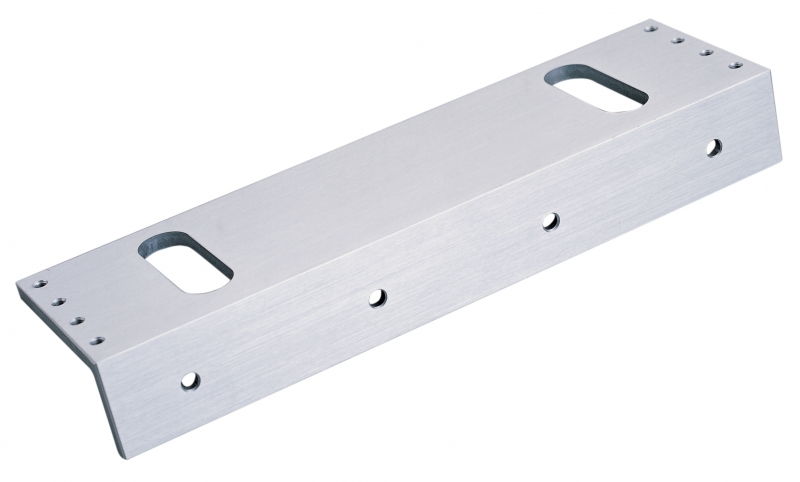

Mounting bracket L |
For doors open outside:
|
![]() |

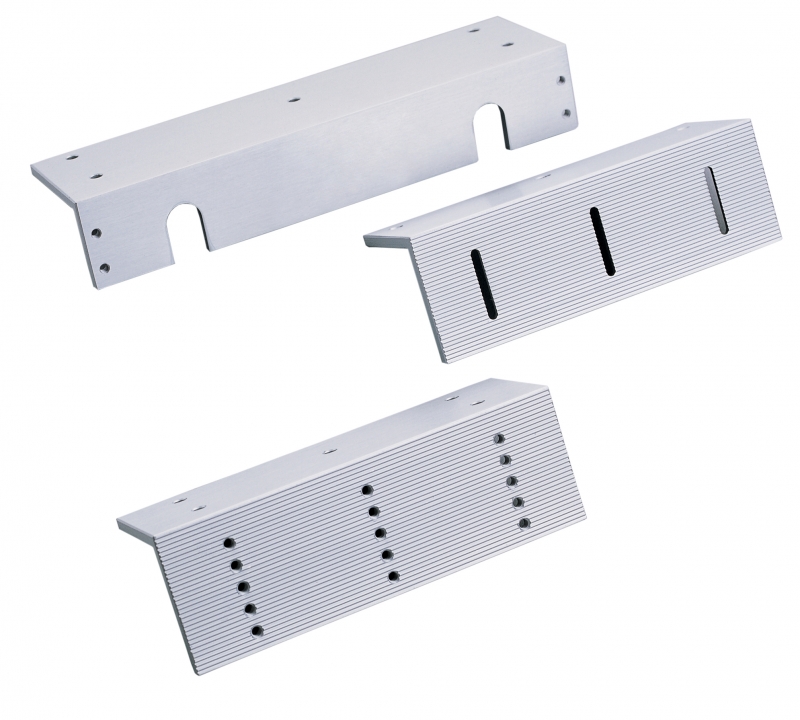

Mounting bracket ZL |
For doors opened inside:
|
![]() |
