Hartte SBL-series
Electric bolts SBL-series ensure high level of security and break-in resistance. The construction enables vertical and horizontal (on the top of the frame) assembly. All electric bolts are equipped with monitoring, built-in varistor, protection against damage in case of incorrect position of doors and auto-lock function after 5 seconds of no activity. Available also in NC mode with mechanical lock for emergency opening of the bolt (for example in case of power failure).
Characteristic:
- fail-secure (NC normally closed) or fail-safe (NO normally open)
- mechanical strength – break-in resistance 8 000 N (800 kg) or 10 000 N (1000 kg)
- mechanical strength – opening cycles 500.000
- for mortise mounting vertically or horizontally (in top frame with bolt released down)
- varistor and locking monitoring built-in
- automatic relock after 5 seconds in case of no operation
- induction distance equal or below 8mm
- prevention against locking doors in incorrect position
Index |

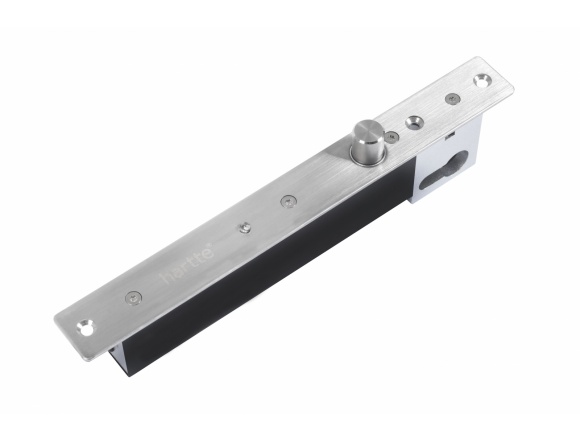

SBL12NMTL |
SBL00RMT |

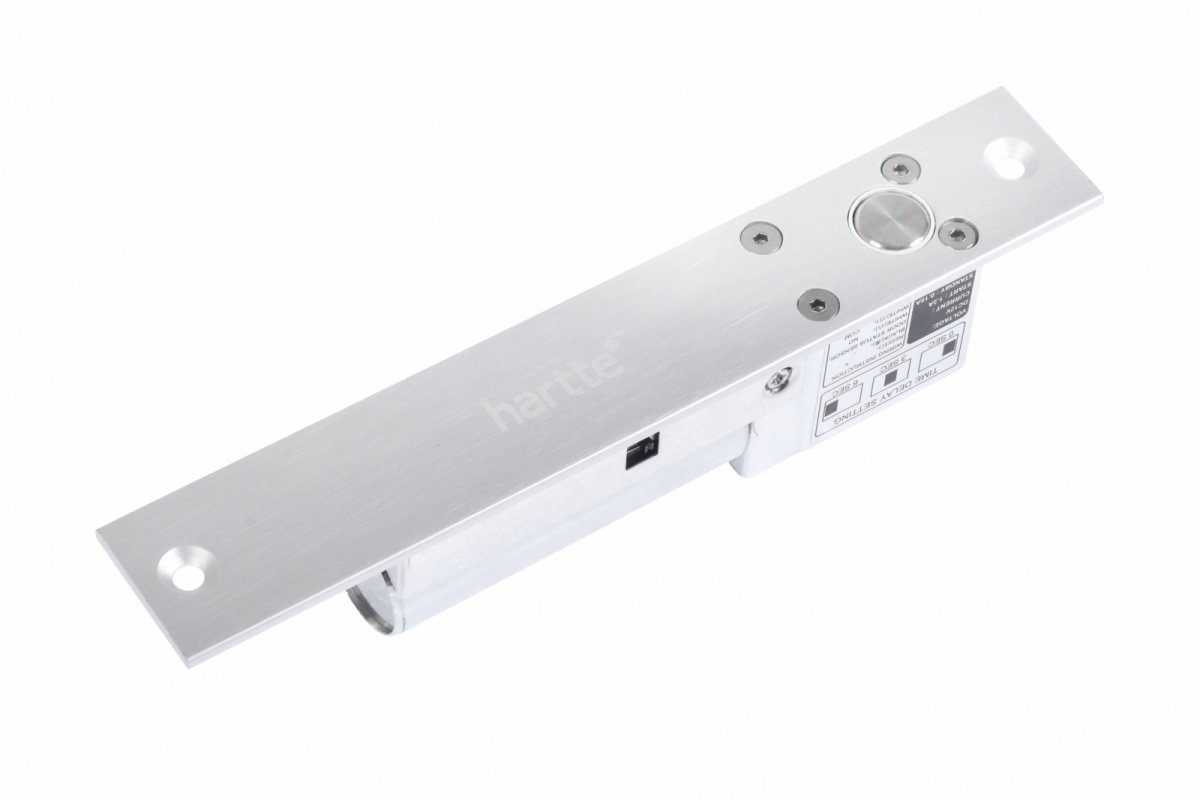

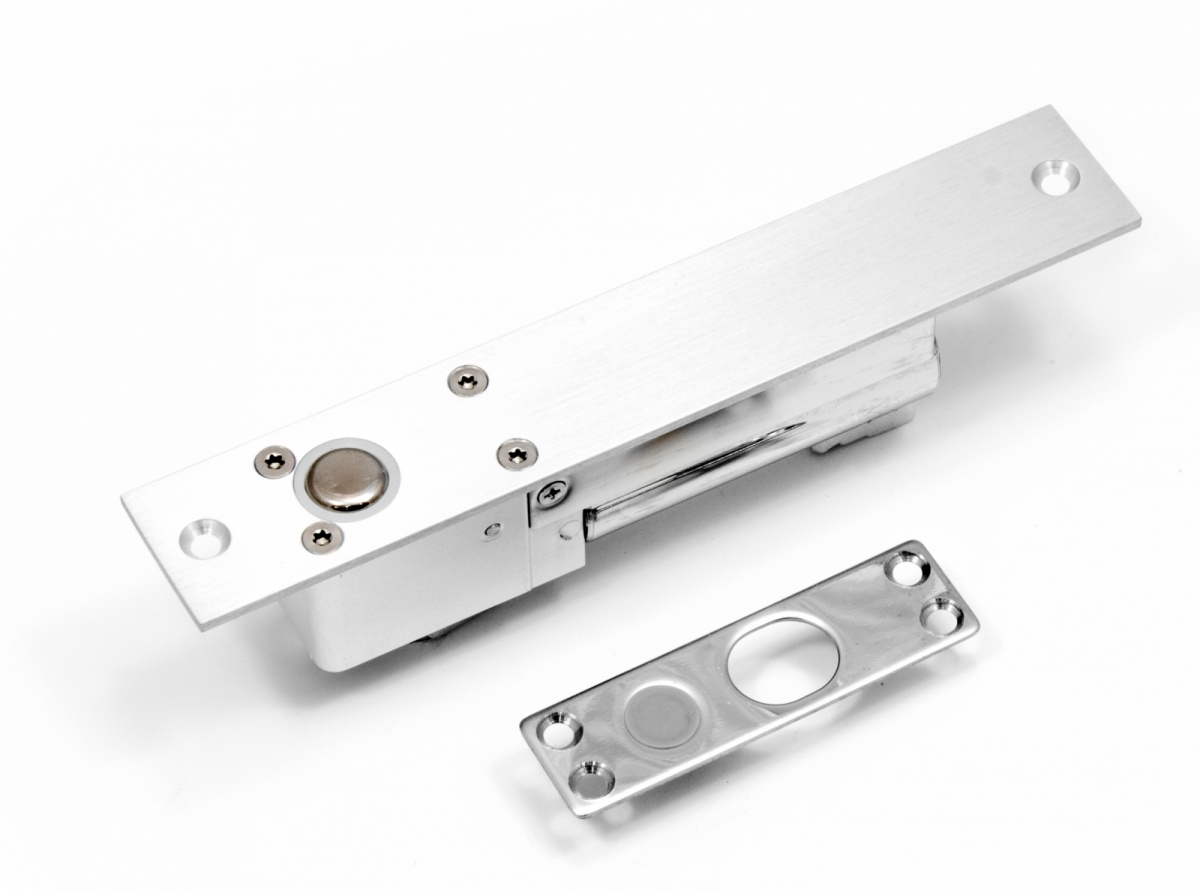

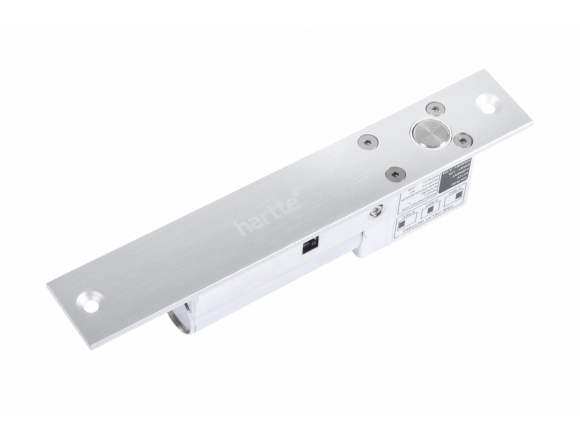

SBL12RM |
||
---|---|---|---|---|---|
Work type |
NC (fail-unlock) |
NO (fail-safe) |
NO (fail-safe) |
||
Voltage (V) |
12 DC |
12-24 DC |
12 DC |
||
Power consumption - start up (mA) |
900 |
950 for 12V; 750 for 24V |
950 |
||
Power consumption - working (mA) |
150 |
150 for 12V; 100 for 24V |
100 |
||

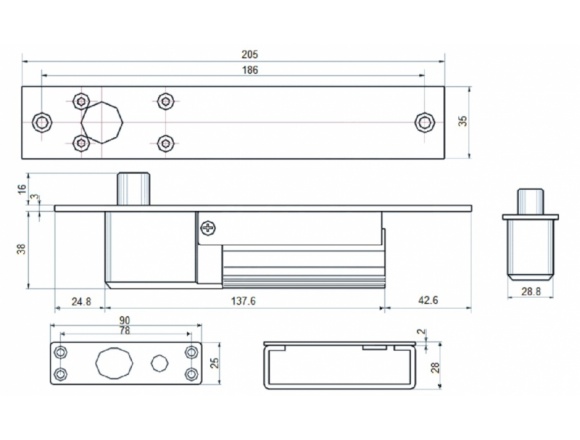

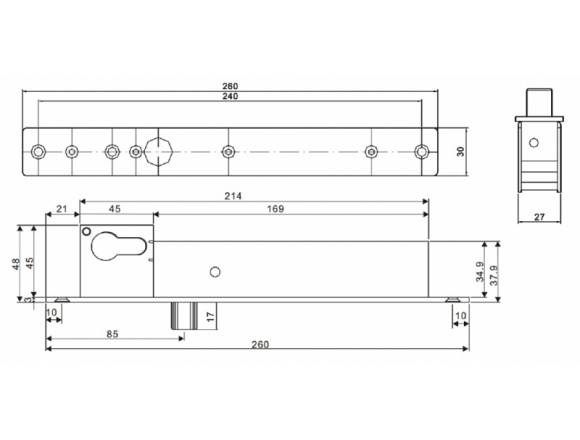

Dimmensions of housing |
260 x 30 x 48 |
205 x 35 x 41 |
205 x 35 x 41 |
||
Dimmensions of |
100 x 25 x 3 |
90 x 25 x 2 |
90 x 25 x 2 |
||
Diameter dead bolt |
16 x 16 mm |
16 x 16 mm |
16 x 16 mm |
||
Weight (kg) |
1,6 kg |
0,72 kg |
0,72 kg |
||
Locking monitoring |
yes |
yes |
yes |
||
LED-sygnalization |
no |
no |
no |
||
Timer |
yes |
no |
no |
||
Mounting |
mortise |
mortise |
mortise |
||

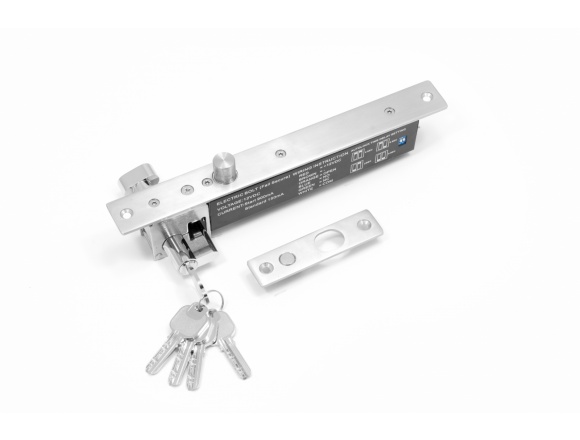

Mechanical emergency opening |
yes |
no |
no |
Index | Voltage | Current | Work type | Functions | Housing | Mounting | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12V | 12 - 24V | AC | DC | NC | NO | Locking monitoring | Timer | Auto-lock | LED sygnalization | Varistor | |||
SBL12RM | ● | ● | ● | ● | ● | ● | ● | standard | mortise | ||||
SBL00RMT | ● | ● | ● | ● | ● | ● | ● | standard | mortise | ||||
SBL12NMTL | ● | ● | ● | ● | ● | ● | ● | ● | standard | mortise |
