Hartte XS-series

Hartte XS-series

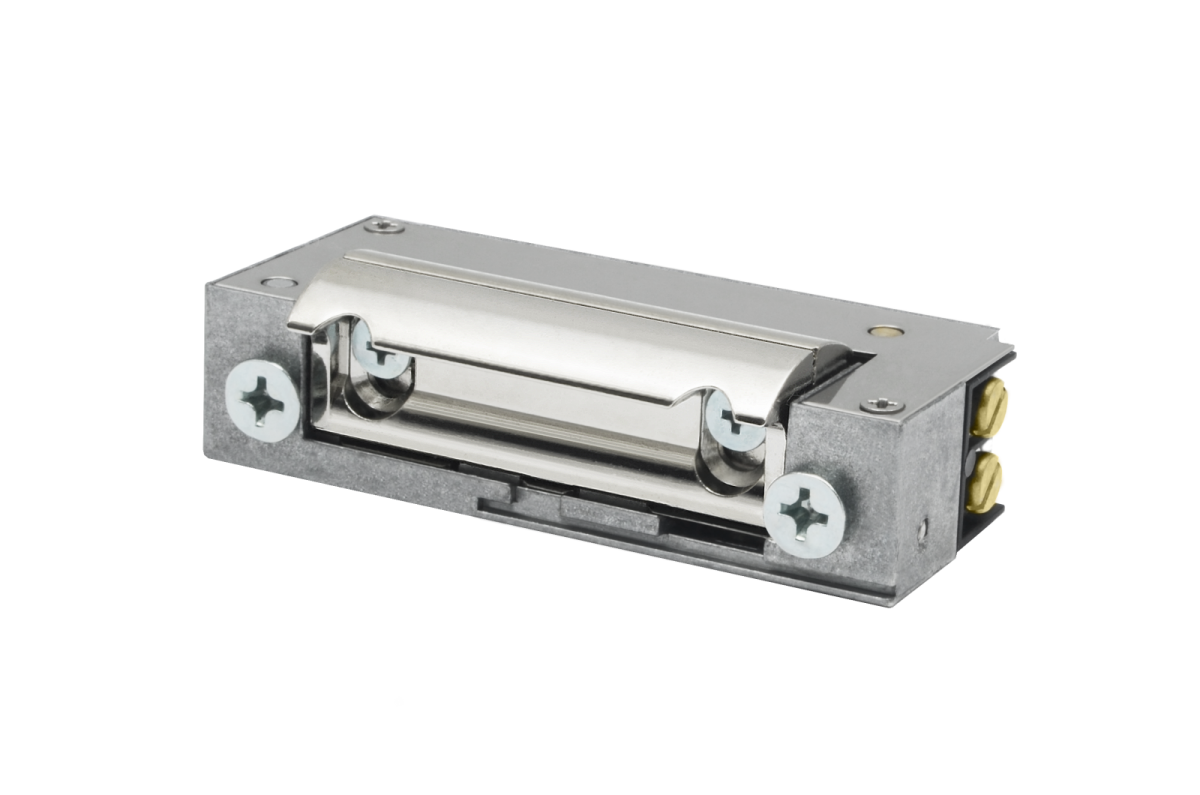

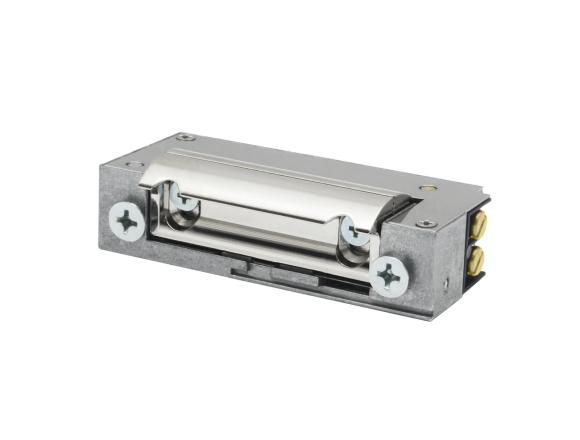

Electric strikes XS-series are narrow (only 16.2 mm width), symmetrical and have a small dimensions enabling mounting in narrow profiles and door frames. They fit perfectly to left and right doors of various types. Radius latch (it is not outstanding out of electric strike outline) and adjustment in the range of 3mm requires less punching, which simplifies and accelerate installation. Available also with monitoring (M), special version for doors with lock latch pressing on electric strikes (-B) and with built-in latch guide for non-rebated doors (C).

Characteristic:

  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  •  symmetric housing

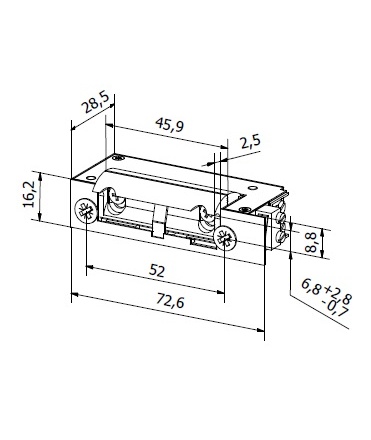

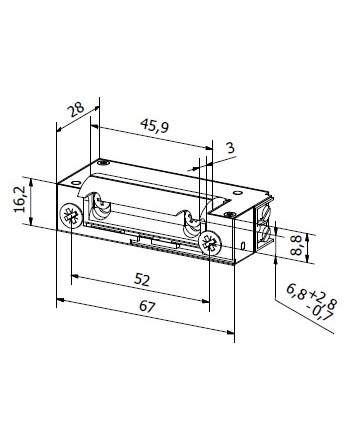

  • size: width 16,2mm, height 67mm, depth 28mm, size of version with door status monitoring (M): 16,2mm x 72,6mm x 28mm
  •  mechanical strength – break-in resistance 3000 N (300kg)
  • mechanical strength – opening cycles 200 000
  •  DIN-left and DIN-right doors
  • adjustable latch up to 3mm
  • radial shape of the latch – when opening the latch is not going beyond the outline of electric strike

Models of HARTTE XS-series:

  • normally closed
  •  with hold-open function
  •  with mechanical unlocking
  • with hold-open and mechanical unlocking function
  •  NO (normally open)
  • low-consumption
  • for continous working 100%ED
  • with strenghten spring for doors with latch pressing

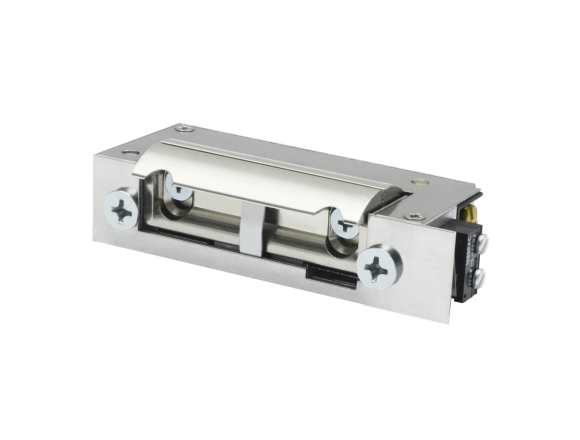

Above models available with door status monitoring (M) and/or varistor (V).

XS-B-series recommended for doors with lock latch pressing on electric strike

XS-C-series with lock latch guide ensuring smooth sidle of latch bolt eliminates necesity of wide punching for electric strike In door frazes.



06AC

12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

XS06A

XS12U

XS12N

XS12R

XS24U

XS24N

XS24R

Voltage tolerance (V)

6-12

10-14

10-14

10-14

AC 21-26

DC 20-26

20-26

20-26

Resistance (Ohm)

8

17,6

60

60

60

230

230

Power consumption AC (mA)

1100

480

-

-

280

-

-

Power consumption DC (mA)

-

680

200

200

400

104

104

Continuously powered (100%ED)

no

no

option

yes

no

no

yes

Index Type Voltage Current Work type Functions Housing Latch
    06V 12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
XS06A standard                     symmetric, narrow radial, adjustable
XS06AP standard                   symmetric, narrow radial, adjustable
XS06AW standard                   symmetric, narrow radial, adjustable
XS06APW standard                 symmetric, narrow radial, adjustable
XS06AV standard                   symmetric, narrow radial, adjustable
XS06APV standard                 symmetric, narrow radial, adjustable
XS06AWV standard                 symmetric, narrow radial, adjustable
XS06APWV standard               symmetric, narrow radial, adjustable
XS12U standard                   symmetric, narrow radial, adjustable
XS12UP standard                 symmetric, narrow radial, adjustable
XS12UW standard                 symmetric, narrow radial, adjustable
XS12UPW standard               symmetric, narrow radial, adjustable
XS12UV standard                 symmetric, narrow radial, adjustable
XS12UPV standard               symmetric, narrow radial, adjustable
XS12UWV standard               symmetric, narrow radial, adjustable
XS12UPWV standard             symmetric, narrow radial, adjustable
XS12N low-consumption                     symmetric, narrow radial, adjustable
XS12NP low-consumption                   symmetric, narrow radial, adjustable
XS12NW low-consumption                   symmetric, narrow radial, adjustable
XS12NPW low-consumption                 symmetric, narrow radial, adjustable
XS12NV low-consumption                   symmetric, narrow radial, adjustable
XS12NPV low-consumption                 symmetric, narrow radial, adjustable
XS12NWV low-consumption                 symmetric, narrow radial, adjustable
XS12NPWV low-consumption               symmetric, narrow radial, adjustable
XS12E continously powered 100%ED                     symmetric, narrow radial, adjustable
XS12EV continously powered 100%ED                     symmetric, narrow radial, adjustable
XS12R fail-safed (NO)                     symmetric, narrow radial, adjustable
XS12RV fail-safed (NO)                   symmetric, narrow radial, adjustable
XS24U standard                   symmetric, narrow radial, adjustable
XS24UP standard                 symmetric, narrow radial, adjustable
XS24UW standard                 symmetric, narrow radial, adjustable
XS24UPW standard               symmetric, narrow radial, adjustable
XS24UV standard                 symmetric, narrow radial, adjustable
XS24UPV standard               symmetric, narrow radial, adjustable
XS24UWV standard               symmetric, narrow radial, adjustable
XS24UPWV standard             symmetric, narrow radial, adjustable
XS24N low-consumption                     symmetric, narrow radial, adjustable
XS24NP low-consumption                   symmetric, narrow radial, adjustable
XS24NW low-consumption                   symmetric, narrow radial, adjustable
XS24NPW low-consumption                 symmetric, narrow radial, adjustable
XS24NV low-consumption                   symmetric, narrow radial, adjustable
XS24NPV low-consumption                 symmetric, narrow radial, adjustable
XS24NWV low-consumption                 symmetric, narrow radial, adjustable
XS24NPWV low-consumption               symmetric, narrow radial, adjustable
XS24R fail-safed (NO)                     symmetric, narrow radial, adjustable
XS24RV fail-safed (NO)                   symmetric, narrow radial, adjustable
XS06AM standard                   symmetric, narrow radial, adjustable
XS06APM standard                 symmetric, narrow radial, adjustable
XS06AWM standard                 symmetric, narrow radial, adjustable
XS06APWM standard               symmetric, narrow radial, adjustable
XS06AMV standard                 symmetric, narrow radial, adjustable
XS06APMV standard               symmetric, narrow radial, adjustable
XS06AWMV standard               symmetric, narrow radial, adjustable
XS06APWMV standard             symmetric, narrow radial, adjustable
XS12UM standard                 symmetric, narrow radial, adjustable
XS12UPM standard               symmetric, narrow radial, adjustable
XS12UWM standard               symmetric, narrow radial, adjustable
XS12UPWM standard             symmetric, narrow radial, adjustable
XS12UMV standard               symmetric, narrow radial, adjustable
XS12UPMV standard             symmetric, narrow radial, adjustable
XS12UWMV standard             symmetric, narrow radial, adjustable
XS12UPWMV standard           symmetric, narrow radial, adjustable
XS12NM low-consumption                   symmetric, narrow radial, adjustable
XS12NPM low-consumption                 symmetric, narrow radial, adjustable
XS12NWM low-consumption                 symmetric, narrow radial, adjustable
XS12NPWM low-consumption               symmetric, narrow radial, adjustable
XS12NMV low-consumption                 symmetric, narrow radial, adjustable
XS12NPMV low-consumption               symmetric, narrow radial, adjustable
XS12NWMV low-consumption               symmetric, narrow radial, adjustable
XS12NPWMV low-consumption             symmetric, narrow radial, adjustable
XS12EM continously powered 100%ED                   symmetric, narrow radial, adjustable
XS12EMV continously powered 100%ED                 symmetric, narrow radial, adjustable
XS12RM fail-safed (NO)                   symmetric, narrow radial, adjustable
XS12RMV fail-safed (NO)                 symmetric, narrow radial, adjustable
XS24UM standard                 symmetric, narrow radial, adjustable
XS24UPM standard               symmetric, narrow radial, adjustable
XS24UWM standard               symmetric, narrow radial, adjustable
XS24UPWM standard             symmetric, narrow radial, adjustable
XS24UMV standard               symmetric, narrow radial, adjustable
XS24UPMV standard             symmetric, narrow radial, adjustable
XS24UWMV 81 standard             symmetric, narrow radial, adjustable
XS24UPWMV standard           symmetric, narrow radial, adjustable
XS24NM low-consumption                   symmetric, narrow radial, adjustable
XS24NPM low-consumption                 symmetric, narrow radial, adjustable
XS24NWM low-consumption                 symmetric, narrow radial, adjustable
XS24NPWM low-consumption               symmetric, narrow radial, adjustable
XS24NMV low-consumption                 symmetric, narrow radial, adjustable
XS24NPMV low-consumption               symmetric, narrow radial, adjustable
XS24NWMV low-consumption               symmetric, narrow radial, adjustable
XS24NPWMV low-consumption             symmetric, narrow radial, adjustable
XS24RM fail-safed (NO)                   symmetric, narrow radial, adjustable
XS24RMV fail-safed (NO)                 symmetric, narrow radial, adjustable
XS12U-B standard                 symmetric, narrow radial, adjustable
XS12UP-B standard               symmetric, narrow radial, adjustable
XS12UW-B standard               symmetric, narrow radial, adjustable
XS12UPW-B standard             symmetric, narrow radial, adjustable
XS12UV-B standard               symmetric, narrow radial, adjustable
XS12UPV-B standard             symmetric, narrow radial, adjustable
XS12UWV-B standard             symmetric, narrow radial, adjustable
XS12UPWV-B standard           symmetric, narrow radial, adjustable
XS12R-B fail-safed (NO)                   symmetric, narrow radial, adjustable
XS12RV-B fail-safed (NO)                 symmetric, narrow radial, adjustable
XS24U-B standard                 symmetric, narrow radial, adjustable
XS24UP-B standard               symmetric, narrow radial, adjustable
XS24UW-B standard               symmetric, narrow radial, adjustable
XS24UPW-B standard             symmetric, narrow radial, adjustable
XS24UV-B standard               symmetric, narrow radial, adjustable
XS24UPV-B standard             symmetric, narrow radial, adjustable
XS24UWV-B standard             symmetric, narrow radial, adjustable
XS24UPWV-B standard           symmetric, narrow radial, adjustable
XS24R-B fail-safed (NO)                   symmetric, narrow radial, adjustable
XS24RV-B fail-safed (NO)                 symmetric, narrow radial, adjustable
XS12U-C standard                 a symmetric, narrow radial, adjustable
XS12UP-C standard               symmetric, narrow radial, adjustable
XS12UW-C standard               symmetric, narrow radial, adjustable
XS12UPW-C standard             symmetric, narrow radial, adjustable
XS12UV-C standard               symmetric, narrow radial, adjustable
XS12UPV-C standard             symmetric, narrow radial, adjustable
XS12UWV-C standard             symmetric, narrow radial, adjustable
XS12UPWV-C standard           symmetric, narrow radial, adjustable
XS12R-C fail-safed (NO)                 symmetric, narrow radial, adjustable
XS12RV-C fail-safed (NO)                 symmetric, narrow radial, adjustable
XS24U-C standard                   symmetric, narrow radial, adjustable
XS24UP-C standard               symmetric, narrow radial, adjustable
XS24UW-C standard               symmetric, narrow radial, adjustable
XS24UPW-C standard             symmetric, narrow radial, adjustable
XS24UV-C standard               symmetric, narrow radial, adjustable
XS24UPV-C standard             symmetric, narrow radial, adjustable
XS24UWV-C standard             symmetric, narrow radial, adjustable
XS24UPWV-C standard           symmetric, narrow radial, adjustable
XS24R-C fail-safed (NO)                   symmetric, narrow radial, adjustable
XS24RV-C fail-safed (NO)                 symmetric, narrow radial, adjustable

Wyjaśnienie funkcji

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized or painted
a

Angle plates

  • ​made out of steel or stainless steel
  • plated, galvanized or painted
a

Boxes

  • ​made out of steel
  • galvanized or painted
  • front or side mounting
a

Special plates with latch bolt guide securing profile

  • made out of steel or stainless steel
  • plated, galvanized or painted
  • Wykonane ze stali nierdzewnej lub zwykłej ocynkowanej, niklowanej lub lakierowanej
a

Blachy do wmurowania

Wykonane ze stali zwykłej ocynkowanej, montowane w furtkach
Mounting brackets for order
  • striking plates adapted to customer needs
