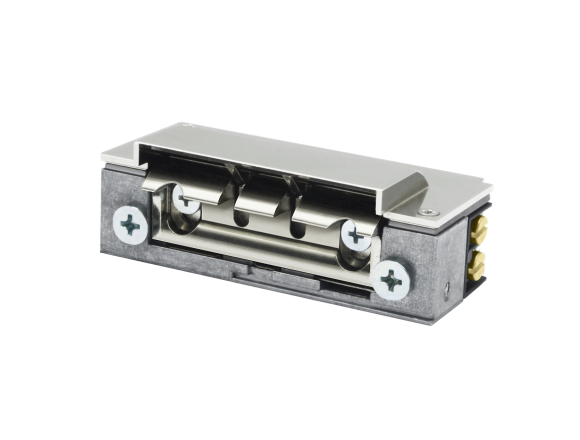

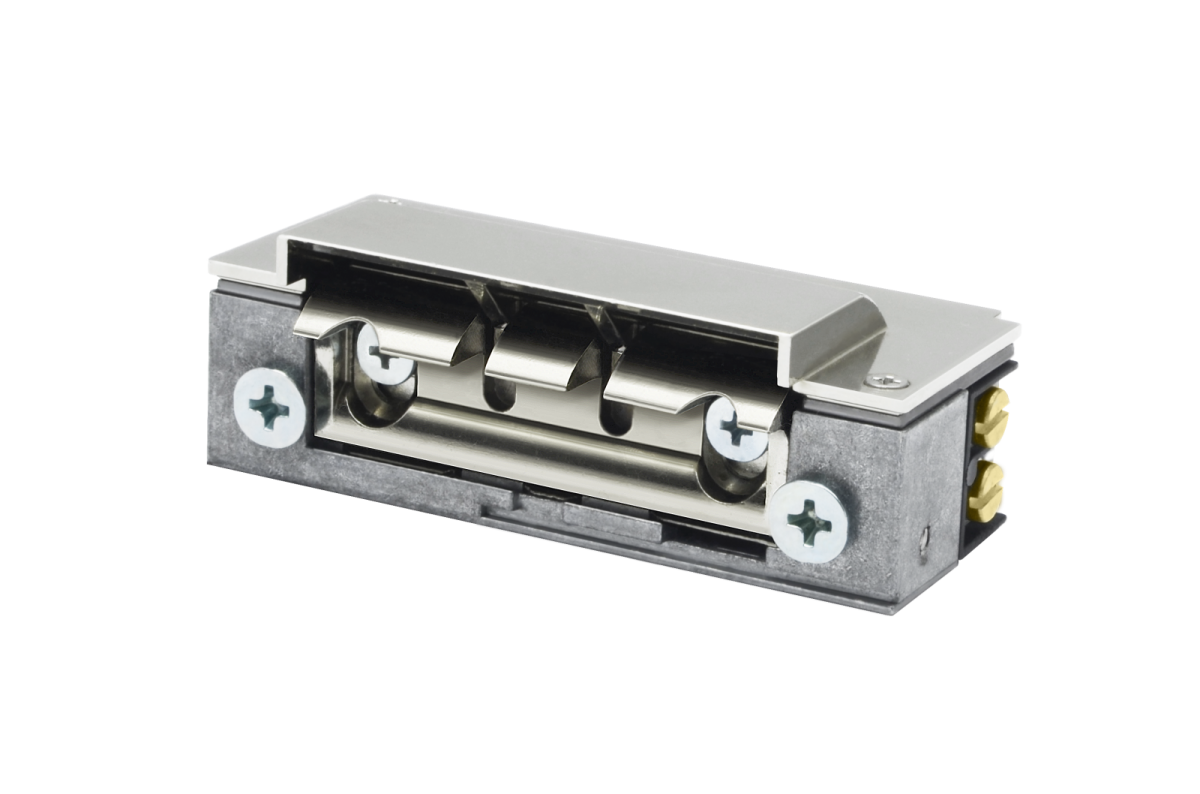

XS-C series features inegrated latch guide being a cover of the latch and allowing montage with no need of cut-out the door profile. Commonly used in private residents, offices and public buildings, both for doors made of aluminium, steel, wood or PVC. XS-C series is recommended especially for non-rebated doors.

Characteristic:​

  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing
  • built-in latch guide

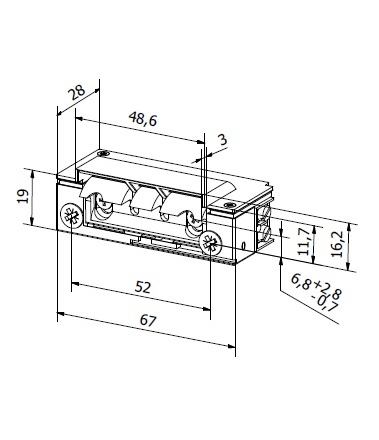

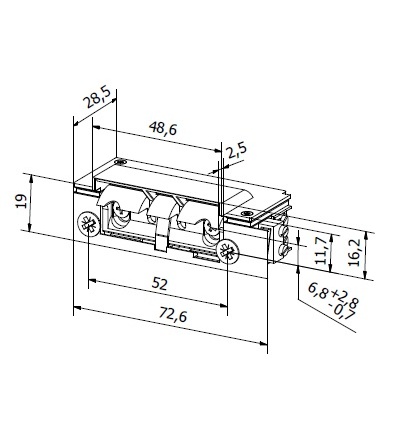

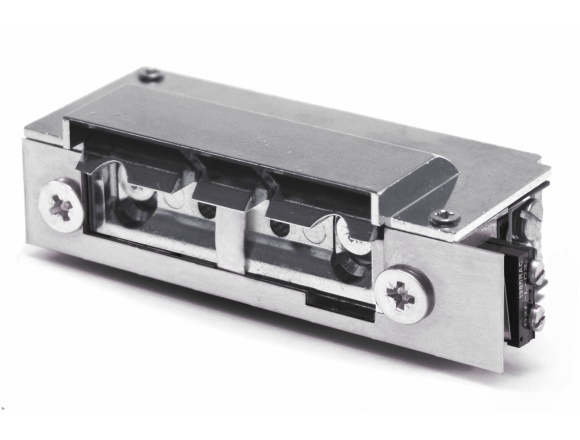

  • size: width 19(23,5)mm, height 67mm, depth 28mm, size of version with door status monitoring (M): 19mm x 72,6mm x 28mm
  • mechanical strength – break-in resistance 3000 N (300kg)
  • mechanical strength – opening cycles 200 000
  • DIN-left and DIN-right doors
  • adjustable latch up to 3,5mm
  • radial shape of the latch – when opening the latch is not going beyond the outline of electric strike

Models of HARTTE XS-C series:​​

  • normally closed (U)
  • with hold-open function (P)
  • with mechanical unlocking (W)
  • with door status monitoring (M)
  • with varistor (V)
  • with strenghten spring (-B)
  • with latch guide (-C)







12-24V AC/DC

12AC/DC

12DC NO

24AC/DC

24DC NO

Index

XS00U-C

XS12U-C

XS12R-C

XS24U-C

XS24R-C

Voltage tolerance (V)

AC 11-26

DC 11-26

10-14

10-14

AC 21-26

DC 20-26

20-26

Resistance (Ohm)

46

17,6

60

60

230

Power consumption AC (mA)

12V 185

24V 370

480

-

280

-

Power consumption DC (mA)

12V 260

24V 520

680

200

400

100

Continuously powered (100%ED)

yes (12V DC)

no

yes

no

yes

Index Type Voltage Current Work type Functions Housing Latch
    06V 12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Strenghten spring Latch bolt guide
XS00U-C continously powered, low consumption           Symmetric narrow Radial adjustable
XS00UP-C continously powered, low consumption         Symmetric narrow Radial adjustable
XS00UW-C continously powered, low consumption         Symmetric narrow Radial adjustable
XS00UPW-C continously powered, low consumption       Symmetric narrow Radial adjustable
XS00U-BC continously powered, low consumption           Symmetric narrow Radial adjustable
XS00UW-BC continously powered, low consumption         Symmetric narrow Radial adjustable
XS12U-BC standard



        Symmetric narrow Radial adjustable
XS12UW-BC standard           Symmetric narrow Radial adjustable
XS12R-BC NO             Symmetric narrow Radial adjustable
XS00UM-C continously powered, low consumption         Symmetric narrow Radial adjustable
XS00UPM-C continously powered, low consumption       Symmetric narrow Radial adjustable
XS00UWM-C continously powered, low consumption       Symmetric narrow Radial adjustable
XS00UPWM-C continously powered, low consumption     Symmetric narrow Radial adjustable
XS12UM-C standard           Symmetric narrow Radial adjustable
XS12UPM-C standard         Symmetric narrow Radial adjustable
XS12UWM-C standard         Symmetric narrow Radial adjustable
XS12UPWM-C standard       Symmetric narrow Radial adjustable
XS12RM-C NO             Symmetric narrow Radial adjustable
XS24UM-C standard           Symmetric narrow Radial adjustable
XS24UPM-C standard         Symmetric narrow Radial adjustable
XS24UWM-C standard         Symmetric narrow Radial adjustable
XS24UPWM-C standard       Symmetric narrow Radial adjustable
XS24RM-C NO             Symmetric narrow Radial adjustable
XS12U-C standard             Symmetric narrow Radial adjustable
XS12UP-C standard           Symmetric narrow Radial adjustable
XS12UW-C standard           Symmetric narrow Radial adjustable
XS12UPW-C standard         Symmetric narrow
XS12R-C NO             Symmetric narrow Radial adjustable
XS24U-C standard               Symmetric narrow Radial adjustable
XS24UP-C standard           Symmetric narrow Radial adjustable
XS24UW-C standard           Symmetric narrow Radial adjustable
XS24UPW-C standard         Symmetric narrow Radial adjustable
XS24R-C NO               Symmetric narrow Radial adjustable
XS00U-CF continously powered, low consumption, without washer           Symmetric narrow Radial adjustable
XS00UP-CF continously powered, low consumption, without washer         Symmetric narrow Radial adjustable
XS00UW-CF continously powered, low consumption, without washer         Symmetric narrow Radial adjustable
XS00UPW-CF continously powered, low consumption, without washer       Symmetric narrow Radial adjustable
XS12U-CF standard, withut washer             Symmetric narrow Radial adjustable
XS12UP-CF standard, without washer           Symmetric narrow Radial adjustable
XS12UW-CF standard, without washer           Symmetric narrow Radial adjustable
XS12UPW-CF standard, without washer         Symmetric narrow Radial adjustable
XS12R-CF NO, without washer               Symmetric narrow  Radial adjustable
XS24U-CF standard, without washer             Symmetric narrow Radial adjustable
XS24R-CF NO, without washer               Symmetric narrow Radial adjustable
