Hartte S-series

Hartte S-series

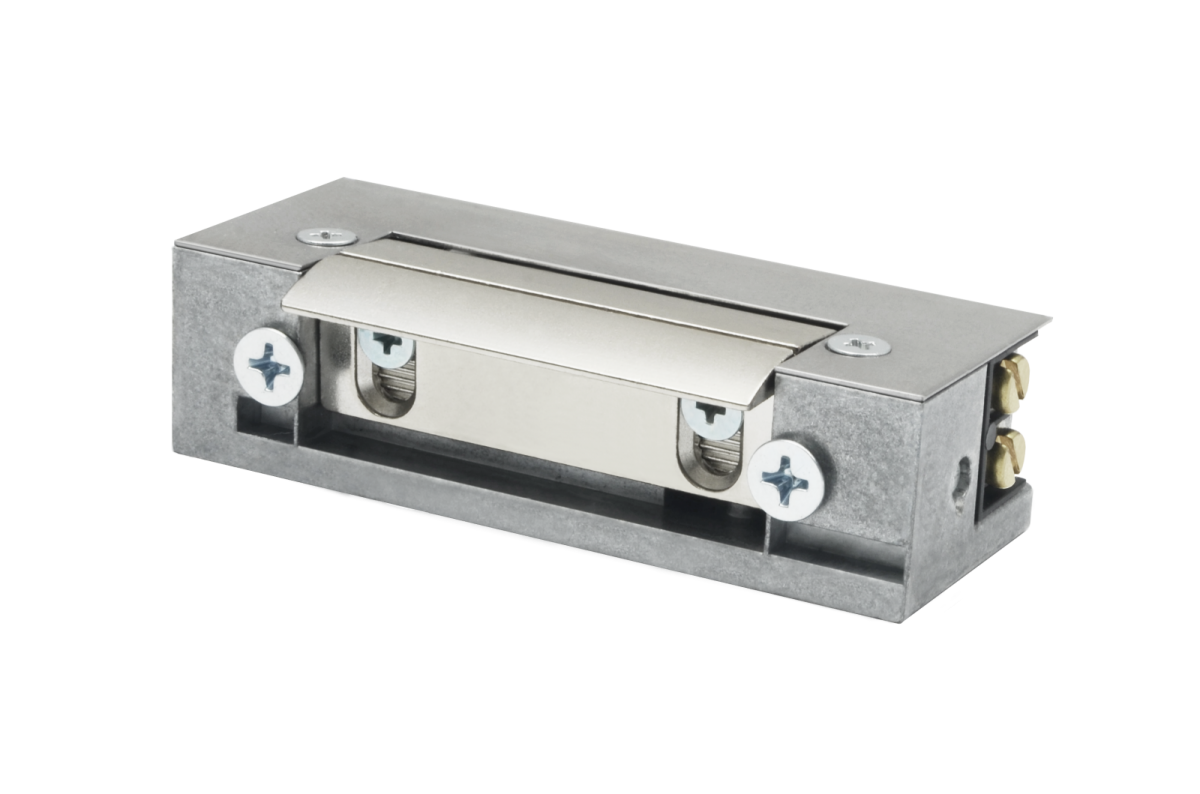

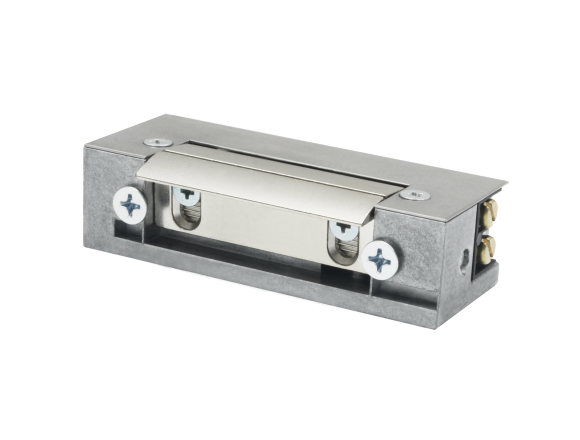

Electric strikes S-series are the most universal electric strikes in all respects. They have symmetrical housing, adjustable latch in the range of 4 mm and a number of additional options and functions. They are used in wooden, steel, aluminum and PVC doors in public and private buildings, applied in access control systems in offices, commercial and industrial buildings as well as in multi-residential buildings.

Characteristic:

  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing

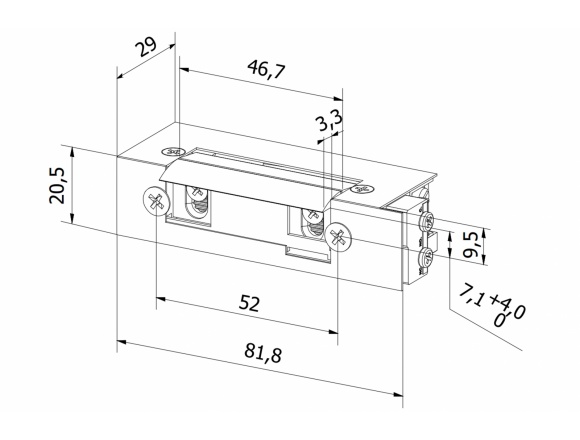

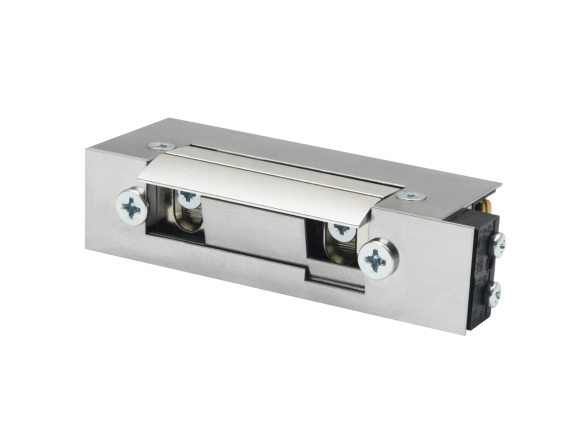

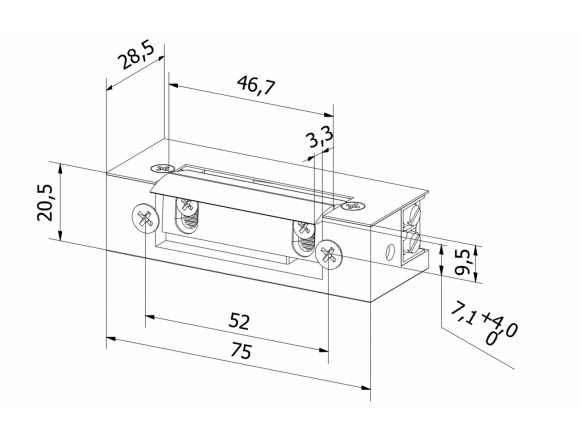

  • size: width 20,5mm, height 75mm, depth 28,5mm, size of version with door status monitoring (M): 20,5mm x 81,8mm x 28,5mm
  • mechanical strength – break-in resistance 3500 N (350kg)
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors
  • adjustable latch up to 4mm

Models of HARTTE S-series:

  • normally closed
  • with hold-open function
  • with mechanical unlocking
  • with hold-open and mechanical unlocking function
  • NO (normally open)
  • low-consumption
  • for continous working 100%ED

Above models available with door status monitoring (M) and/or varistor (V).



06AC

12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

S06A

S12U

S12N

S12R

S24U

S24N

S24R

Voltage tolerance (V)

6-12

10-14

10-14

10-14

AC 21-26
DC 20-26

20-26

20-26

Resistance (Ohm)

10

21

38

63

130

150

250

Power consumption AC (mA)

1200

400

-

-

130

-

-

Power consumption DC (mA)

-

570

320

190

180

160

100

Continuously powered (100%ED)

no

no

option

yes

no

option

yes

Index Type Voltage Current Work type Functions Housing Latch
    06V 12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
S06A standard                     symmetric adjustable
S06AP standard                   symmetric adjustable
S06AW standard                   symmetric adjustable
S06APW standard                 symmetric adjustable
S06AV standard                   symmetric adjustable
S06APV standard                 symmetric adjustable
S06AWV standard                 symmetric adjustable
S06APWV standard               symmetric adjustable
S12U standard                   symmetric adjustable
S12UP standard                 symmetric adjustable
S12UW standard                 symmetric adjustable
S12UPW standard               symmetric adjustable
S12UV standard                 symmetric adjustable
S12UPV standard               symmetric adjustable
S12UWV standard               symmetric adjustable
S12UPWV standard             symmetric adjustable
S12N low-consumption                     symmetric adjustable
S12NP low-consumption                   symmetric adjustable
S12NW low-consumption                   symmetric adjustable
S12NPW low-consumption                 symmetric adjustable
S12NV low-consumption                   symmetric adjustable
S12NPV low-consumption                 symmetric adjustable
S12NWV low-consumption                 symmetric adjustable
S12NPWV low-consumption               symmetric adjustable
S12E continously powered100%ED                     symmetric adjustable
S12EV continously powered 100%ED                   symmetric adjustable
S12R fail-safed (NO)                     symmetric adjustable
S12RV fail-safed (NO)                   symmetric adjustable
S24U standard                   symmetric adjustable
S24UP standard                 symmetric adjustable
S24UW standard                 symmetric adjustable
S24UPW standard               symmetric adjustable
S24UV standard                 symmetric adjustable
S24UPV standard               symmetric adjustable
S24UWV standard               symmetric adjustable
S24UPWV standard             symmetric adjustable
S24N low-consumption                     symmetric adjustable
S24NP low-consumption                   symmetric adjustable
S24NW low-consumption                   symmetric adjustable
S24NPW low-consumption                 symmetric adjustable
S24NV low-consumption                   symmetric adjustable
S24NPV low-consumption                 symmetric adjustable
S24NWV low-consumption                 symmetric adjustable
S24NPWV low-consumption               symmetric adjustable
S24E continously powered 100%ED                     symmetric adjustable
S24EV continously powered 100%ED                   symmetric adjustable
S24R fail-safed (NO)                     symmetric adjustable
S24RV fail-safed (NO)                   symmetric adjustable
S06AM standard                   symmetric adjustable
S06APM standard                 symmetric adjustable
S06AWM standard                 symmetric adjustable
S06APWM standard               symmetric adjustable
S06AMV standard                 symmetric adjustable
S06APMV standard               symmetric adjustable
S06AWMV standard               symmetric adjustable
S06APWMV standard             symmetric adjustable
S12UM standard                 symmetric adjustable
S12UPM standard               symmetric adjustable
S12UWM standard               symmetric adjustable
S12UPWM standard             symmetric adjustable
S12UMV standard               symmetric adjustable
S12UPMV standard             symmetric adjustable
S12UWMV standard             symmetric adjustable
S12UPWMV standard           symmetric adjustable
S12NM low-consumption                   symmetric adjustable
S12NPM low-consumption                 symmetric adjustable
S12NWM low-consumption                 symmetric adjustable
S12NPWM low-consumption               symmetric adjustable
S12NMV low-consumption                 symmetric adjustable
S12NPMV low-consumption               symmetric adjustable
S12NWMV low-consumption               symmetric adjustable
S12NPWMV low-consumption             symmetric adjustable
S12EM continously powered100%ED                   symmetric adjustable
S12EMV continously powered 100%ED                 symmetric adjustable
S12RM fail-safed (NO)                   symmetric adjustable
S12RMV fail-safed (NO)                 symmetric adjustable
S24UM standard                 symmetric adjustable
S24UPM standard               symmetric adjustable
S24UWM standard               symmetric adjustable
S24UPWM standard             symmetric adjustable
S24UMV standard               symmetric adjustable
S24UPMV standard             symmetric adjustable
S24UWMV standard             symmetric adjustable
S24UPWMV standard           symmetric adjustable
S24NM low-consumption                   symmetric adjustable
S24NPM low-consumption                 symmetric adjustable
S24NWM low-consumption                 symmetric adjustable
S24NPWM low-consumption               symmetric adjustable
S24NMV low-consumption                 symmetric adjustable
S24NPMV low-consumption               symmetric adjustable
S24NWMV low-consumption               symmetric adjustable
S24NPWMV low-consumption             symmetric adjustable
S24EM continously powered 100%ED                   symmetric adjustable
S24EMV continously powered 100%ED                 symmetric adjustable
S24RM fail-safed (NO)                   symmetric adjustable
S24RMV fail-safed (NO)                 symmetric adjustable

Wyjaśnienie funkcji

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized or painted
a

Angle plates

  • ​made out of steel or stainless steel
  • plated, galvanized or painted
a

Boxes

  • ​made out of steel
  • galvanized or painted
  • front or side mounting
a

Special plates with latch bolt guide securing profile

  • made out of steel or stainless steel
  • plated, galvanized or painted
  • Wykonane ze stali nierdzewnej lub zwykłej ocynkowanej, niklowanej lub lakierowanej
a

Blachy do wmurowania

Wykonane ze stali zwykłej ocynkowanej, montowane w furtkach
Mounting brackets for order
  • striking plates adapted to customer needs
