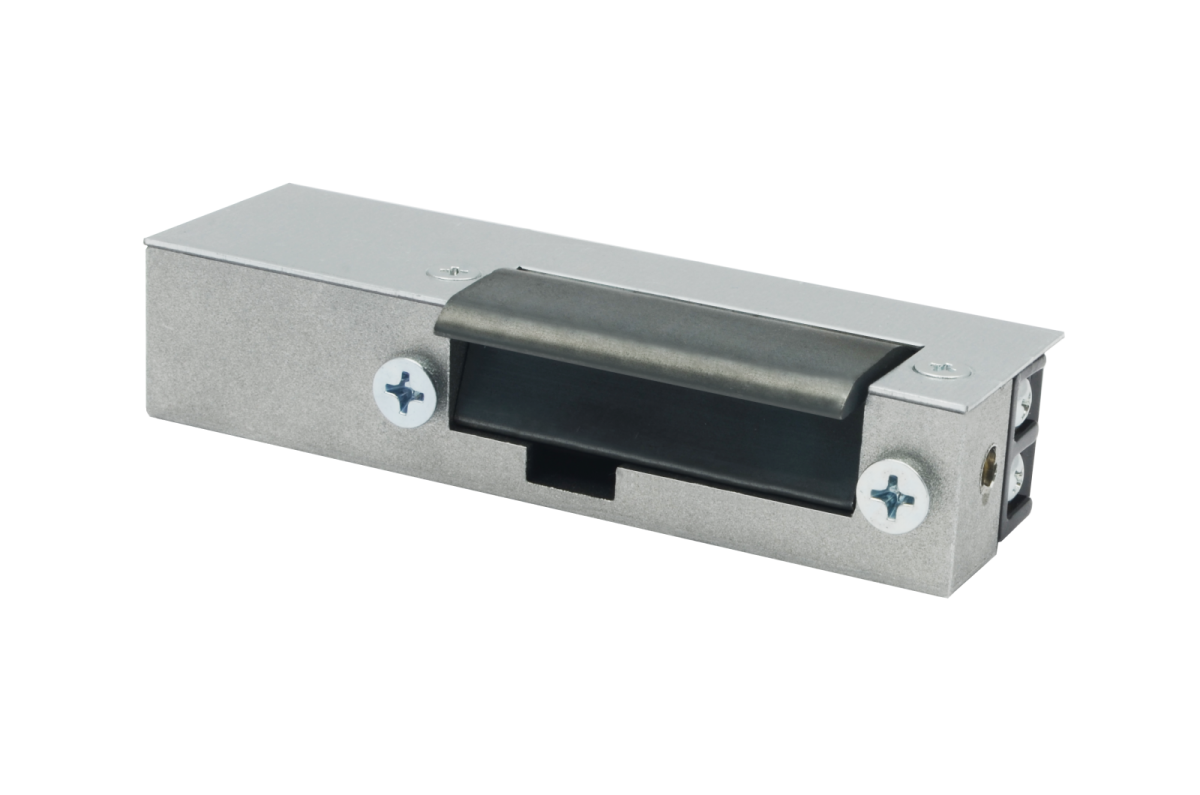

Electric strikes EL1-series have asymmetric housing and steel, strengthened latch. There is no latch adjustment thank to this the latch is stronger than adjustable latch. Biratronik electric strikes are applied to wide range of doors (wooden, metal and PVC), gateways and lockers. They cooperate properly with all other elements of access control systems: intercoms, video intercoms, door phones, card readers etc. and therefore they are often used in residential and multi-apartment buildings, offices and commercial buildings.

Characteristic:

  • fail-secure (NC normally closed) or fail-safe (NO normally open)

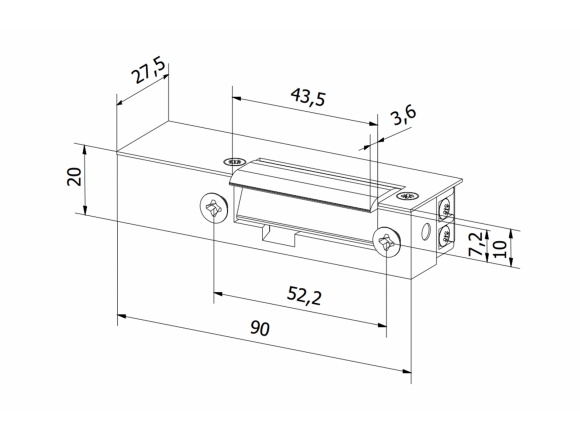

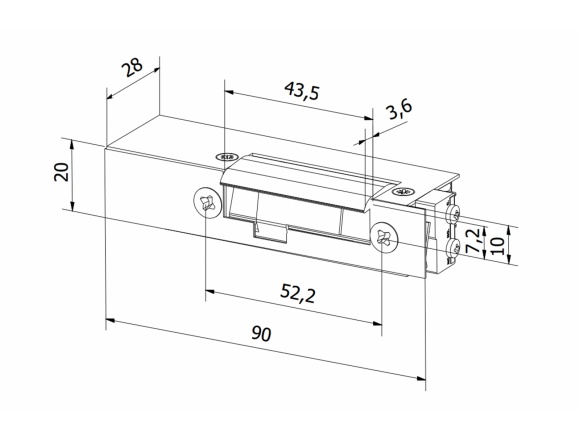

  • size: width 20mm, height 90mm, depth 27,5mm, size of version with door status monitoring 20mm x 97mm x 27,5m
  • mechanical strength – break-in resistance 6000 N
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors

Models in BIRA BASIC line

  • normally close
  • with hold-open function
  • with mechanical unlocking
  • with hold-open function and mechanical unlocking
  • NO (normally open)
  • low-consumption

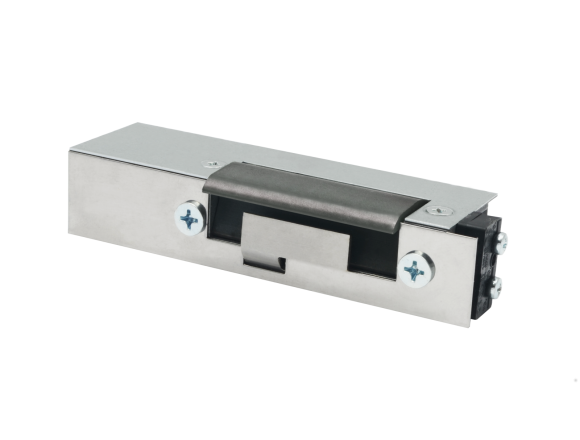

Above models available with door status monitoring (KZ)
and/or varistor (Y).



12AC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

EL1-001

EL1-005

EL1-009

EL1-010

EL1-014

EL1-018

Voltage tolerance (V)

8-14

8-14

8-14

18-26

18-26

18-26

Resistance (Ohm)

13,2

27

60

70

155

230

Power consumption AC (mA)

640

-

-

240

-

-

Power consumption DC (mA)

-

440

200

340

150

100

Continuously powered (100% ED)

nie

opcja

tak

nie

opcja

tak

Index Type Voltage Current Work type Functions Housing Latch
    12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
EL1-001 standard                   asymmetric steel
EL1-002 standard                 asymmetric steel
EL1-003 standard                 asymmetric steel
EL1-004 standard               asymmetric steel
EL1-001-Y standard                 asymmetric steel
EL1-002-Y standard               asymmetric steel
EL1-003-Y standard               asymmetric steel
EL1-004-Y standard             asymmetric steel
EL1-005 low-consumption                   asymmetric steel
EL1-006 low-consumption                 asymmetric steel
EL1-007 low-consumption                 asymmetric steel
EL1-008 low-consumption               asymmetric steel
EL1-005-Y low-consumption                 asymmetric steel
EL1-006-Y low-consumption               asymmetric steel
EL1-007-Y low-consumption               asymmetric steel
EL1-008-Y low-consumption             asymmetric steel
EL1-009 fail-safed (NO)                   asymmetric steel
EL1-009-Y fail-safed (NO)                 asymmetric steel
EL1-010 standard                 asymmetric steel
EL1-011 standard               asymmetric steel
EL1-012 standard               asymmetric steel
EL1-013 standard             asymmetric steel
EL1-010-Y standard               asymmetric steel
EL1-011-Y standard             asymmetric steel
EL1-012-Y standard             asymmetric steel
EL1-013-Y standard           asymmetric steel
EL1-014 low-consumption                   asymmetric steel
EL1-015 low-consumption                 asymmetric steel
EL1-016 low-consumption                 asymmetric steel
EL1-017 low-consumption               asymmetric steel
EL1-014-Y low-consumption                 asymmetric steel
EL1-015-Y low-consumption               asymmetric steel
EL1-016-Y low-consumption               asymmetric steel
EL1-017-Y low-consumption             asymmetric steel
EL1-018 fail-safed (NO)                   asymmetric steel
EL1-018-Y fail-safed (NO)                 asymmetric steel
EL1-001-KZ standard               asymmetric steel
EL1-001-KZY standard             asymmetric steel
EL1-005-KZ low-consumption                 asymmetric steel
EL1-006-KZ low-consumption               asymmetric steel
EL1-005-KZY low-consumption               asymmetric steel
EL1-006-KZY low-consumption             asymmetric steel
EL1-009-KZ fail-safed (NO)                 asymmetric steel
EL1-009-KZY fail-safed (NO)               asymmetric steel
EL1-010-KZ standard               asymmetric steel
EL1-011-KZ standard             asymmetric steel
EL1-010-KZY standard             asymmetric steel
EL1-011-KZY standard           asymmetric steel
EL1-014-KZ low-consumption                 asymmetric steel
EL1-015-KZ low-consumption               asymmetric steel
EL1-014-KZY low-consumption               asymmetric steel
EL1-015-KZY low-consumption             asymmetric steel
EL1-018-KZ fail-safed (NO)                 asymmetric steel
EL1-018-KZY fail-safed (NO)               asymmetric steel

Wyjaśnienie funkcji

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized or painted
a

Angle plates

  • ​made out of steel or stainless steel
  • plated, galvanized or painted
a

Boxes

  • ​made out of steel
  • galvanized or painted
  • front or side mounting
a

Special plates with latch bolt guide securing profile

  • made out of steel or stainless steel
  • plated, galvanized or painted
  • Wykonane ze stali nierdzewnej lub zwykłej ocynkowanej, niklowanej lub lakierowanej
a

Blachy do wmurowania

Wykonane ze stali zwykłej ocynkowanej, montowane w furtkach
Mounting brackets for order
  • striking plates adapted to customer needs
