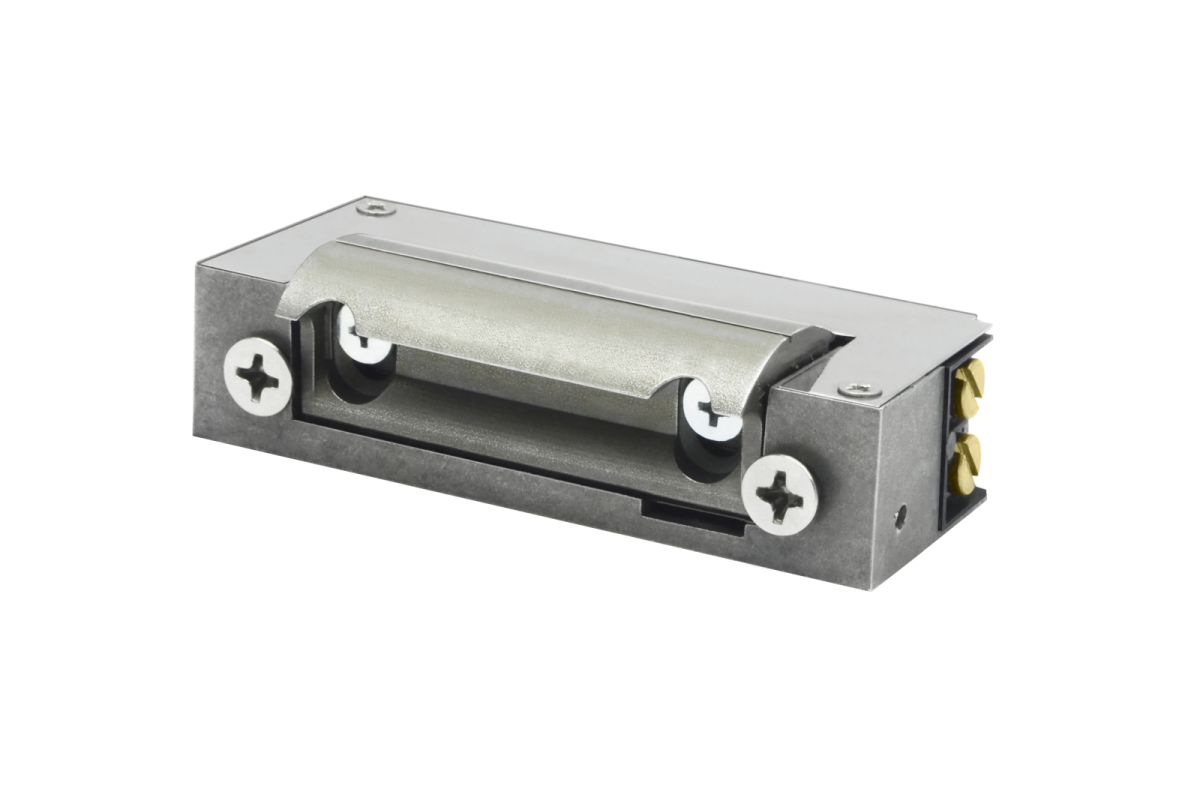

Versatile fire-resistant electric strikes XSHD-series have CE certificate enabling application in all types of doors with classification EI60 according to Resolution CPR 305/2011 and the EU harmonized standard for electric strikes 14846.

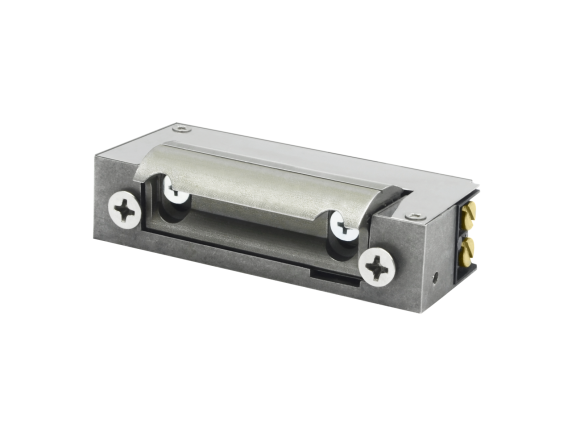

Narrow, fire protection electric strikes XSHD-series have steel latch with radial shape(it's not outstanding of electric strike outline), adjustable in range of 3mm and symmetric housing, what speeds up and make installation easier in DIN-right and DIN-left doors. Moreover punching in door frame of fire-resistant doors is simplified.

Characteristic:

  • for doors with fire-rate EI60
  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing and radial latch

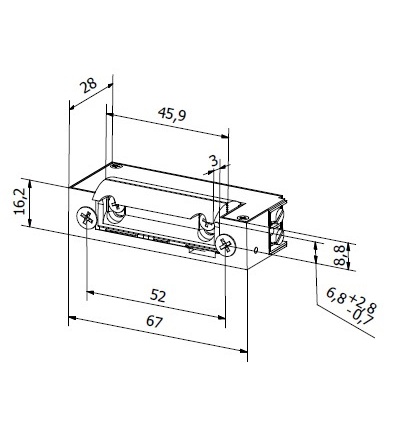

  • size: width 16,2 mm, height  67 mm, depth 28 mm,

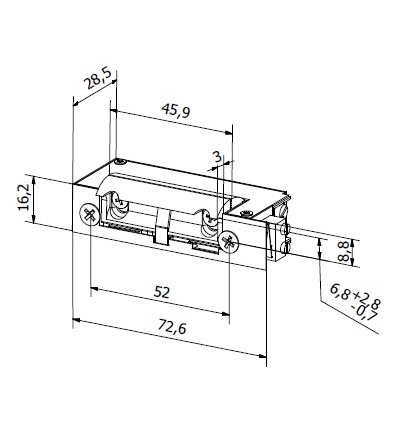

    size of version with door status monitoring: 16,2 mm x 72,6 mm x 28,5 mm
  • mechanical strength – break-in resistance 3500 N (350 kg)
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors
  • latch adjustable up to 4mm

Models of HARTTE SHD-series:

  • normally closed
  • normally open (mounting on additional lock)
  • normally closed low consumption

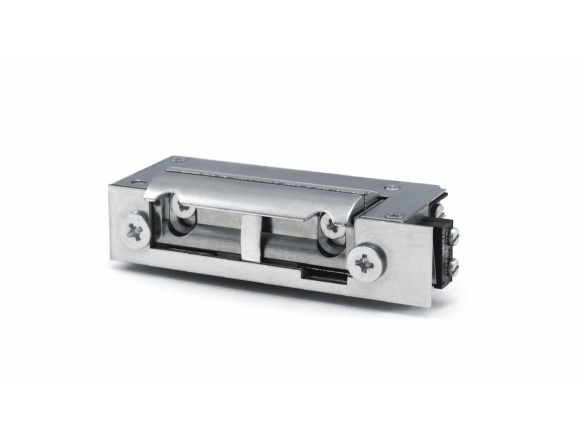

Above models available also with door status monitoring (M) and/or varistor (V).



12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

XSHD12U

XSHD12N

XSHD12R

XSHD24U

XSHD24N

XSHD24R

Voltage tolerance (V)

10-14

10-14

10-14

AC 21-26

DC 20-26

20-26

20-26

Resistance (Ohm)

17,6

60

60

60

230

230

Power consumption AC (mA)

480

-

-

280

-

-

Power consumption DC (mA)

680

200

200

400

100

100

Continuously powered (100%ED)

no

option

yes

no

no

yes

Index Type Voltage Current Work type Functions Housing Latch
    06V 12V 24V AC DC NC NO Mechanical unlocking Hold open Monitoring Varistor Strenghten spring Latch bolt guide
XSHD12U standard                   symmetric, narrow radial, adjustable
XSHD12UV standard                 symmetric, narrow radial, adjustable
XSHD12N low-consumption                     symmetric, narrow radial, adjustable
XSHD12NV low-consumption                   symmetric, narrow radial, adjustable
XSHD12R NO                     symmetric, narrow radial, adjustable
XSHD12RV NO                   symmetric, narrow radial, adjustable
XSHD24U standard                   symmetric, narrow radial, adjustable
XSHD24UV standard                 symmetric, narrow radial, adjustable
XSHD24N low-consumption                     symmetric, narrow radial, adjustable
XSHD24NV low-consumption                   symmetric, narrow radial, adjustable
XSHD24R NO                     symmetric, narrow radial, adjustable
XSHD24RV NO                   symmetric, narrow radial, adjustable
XSHD12UM standard                 symmetric, narrow radial, adjustable
XSHD12UMV standard               symmetric, narrow radial, adjustable
XSHD12NM low-consumption                   symmetric, narrow radial, adjustable
XSHD12NMV low-consumption                 symmetric, narrow radial, adjustable
XSHD12RM NO                   symmetric, narrow radial, adjustable
XSHD12RMV NO                 symmetric, narrow radial, adjustable
XSHD24UM standard                 symmetric, narrow radial, adjustable
XSHD24UMV standard               symmetric, narrow radial, adjustable
XSHD24NM low-consumption                   symmetric, narrow radial, adjustable
XSHD24NMV low-consumption                 symmetric, narrow radial, adjustable
XSHD24RM NO                   symmetric, narrow radial, adjustable
XSHD24RMV NO                 symmetric, narrow radial, adjustable

Helpful information PL

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized or painted
a

Angle plates

  • ​made out of steel or stainless steel
  • plated, galvanized or painted
a

Boxes

  • ​made out of steel
  • galvanized or painted
  • front or side mounting
a

Special plates with latch bolt guide securing profile

  • made out of steel or stainless steel
  • plated, galvanized or painted
  • Wykonane ze stali nierdzewnej lub zwykłej ocynkowanej, niklowanej lub lakierowanej
a

Blachy do wmurowania

Wykonane ze stali zwykłej ocynkowanej, montowane w furtkach
Mounting brackets for order
  • striking plates adapted to customer needs
