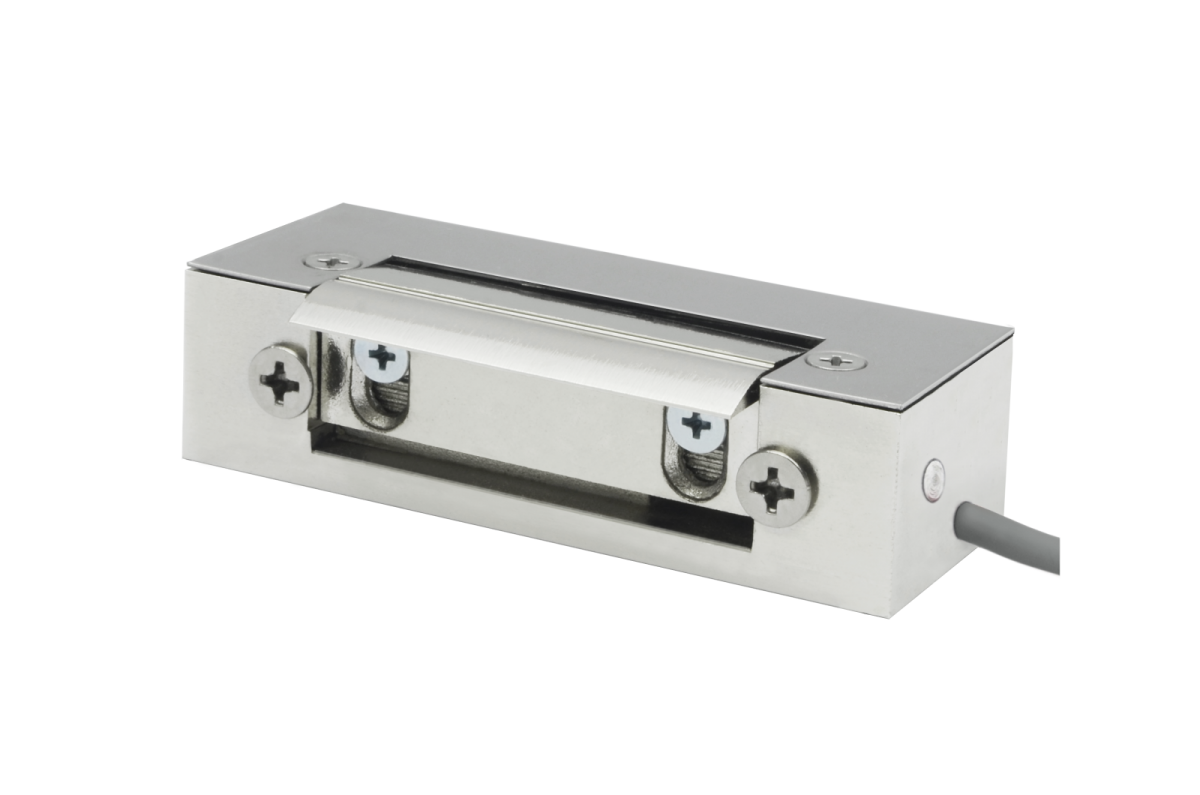

Certified electric strikes for fire-protection systems from SF-series are applied in fire-doors with classification EI120 according to Resolution CPR 305/2011 and the EU harmonized standard for electric strikes 14846.

SF-series feature symmetric housing and 4 mm adjustment of the latch, which simplify mounting and punching process in fire doors.

Characteristic:

  • fire-rate EI120
  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing

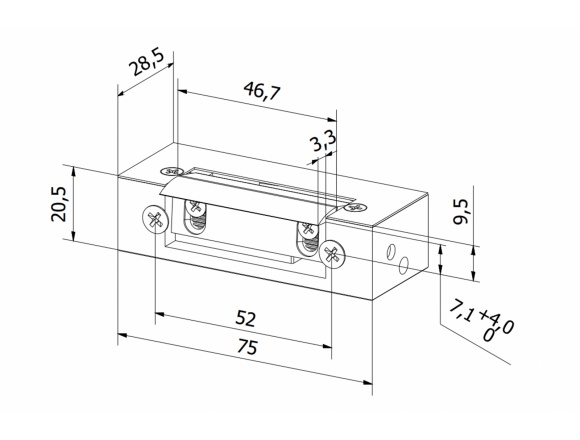

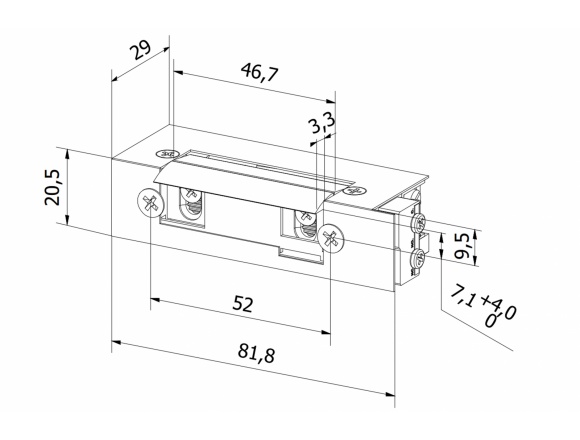

  •  size: width 20,5mm, height 75mm, depth 28,5mm, size of version with door status monitoring: width 20,5mm x height 81,8mm x depth 28,5mm
  • mechanical strength – break-in resistance 3500 N (350 kg)
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors
  • latch adjustable up to 4mm

Models of HARTTE SF line:

  • normally closed
  • normally open(mounting on additional lock)
  • normally closed low consumption

Above models available with door status monitoring (M) and/or varistor (V)



12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

SF12U

SF12N

SF12R

SF24U

SF24N

SF24R

Voltage tolerance (V)

10-14

10-14

10-14

AC 21-26
DC 20-26

20-26

20-26

Resistance (Ohm)

21

38

63

130

150

250

Power consumption AC (mA)

400

-

-

130

-

-

Power consumption DC (mA)

570

320

190

180

160

100

Continuously powered (100%ED)

no

option

yes

no

option

yes

Index Type Voltage Current Work type Functions Housing Latch
    12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
SF12U standard                 symmetric steel, adjustable
SF12UV standard               symmetric steel, adjustable
SF12N low-consumption                   symmetric steel, adjustable
SF12NV low-consumption                 symmetric steel, adjustable
SF12R fail-safed (NO)                   symmetric steel, adjustable
SF12RV fail-safed (NO)                 symmetric steel, adjustable
SF24U standard                 symmetric steel, adjustable
SF24UV standard               symmetric steel, adjustable
SF24N low-consumption                   symmetric steel, adjustable
SF24NV low-consumption                 symmetric steel, adjustable
SF24R fail-safed (NO)                   symmetric steel, adjustable
SF24RV fail-safed (NO)                 symmetric steel, adjustable
SF12UM standard               symmetric steel, adjustable
SF12UMV standard             symmetric steel, adjustable
SF12NM low-consumption                 symmetric steel, adjustable
SF12NMV low-consumption               symmetric steel, adjustable
SF12RM fail-safed (NO)                 symmetric steel, adjustable
SF12RMV fail-safed (NO)               symmetric steel, adjustable
SF24UM standard               symmetric steel, adjustable
SF24UMV standard             symmetric steel, adjustable
SF24NM low-consumption                 symmetric steel, adjustable
SF24NMV low-consumption               symmetric steel, adjustable
SF24RM fail-safed (NO)                 symmetric steel, adjustable
SF24RMV fail-safed (NO)               symmetric steel, adjustable

Wyjaśnienie funkcji

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized or painted
a

Angle plates

  • ​made out of steel or stainless steel
  • plated, galvanized or painted
a

Boxes

  • ​made out of steel
  • galvanized or painted
  • front or side mounting
a

Special plates with latch bolt guide securing profile

  • made out of steel or stainless steel
  • plated, galvanized or painted
  • Wykonane ze stali nierdzewnej lub zwykłej ocynkowanej, niklowanej lub lakierowanej
a

Blachy do wmurowania

Wykonane ze stali zwykłej ocynkowanej, montowane w furtkach
Mounting brackets for order
  • striking plates adapted to customer needs
