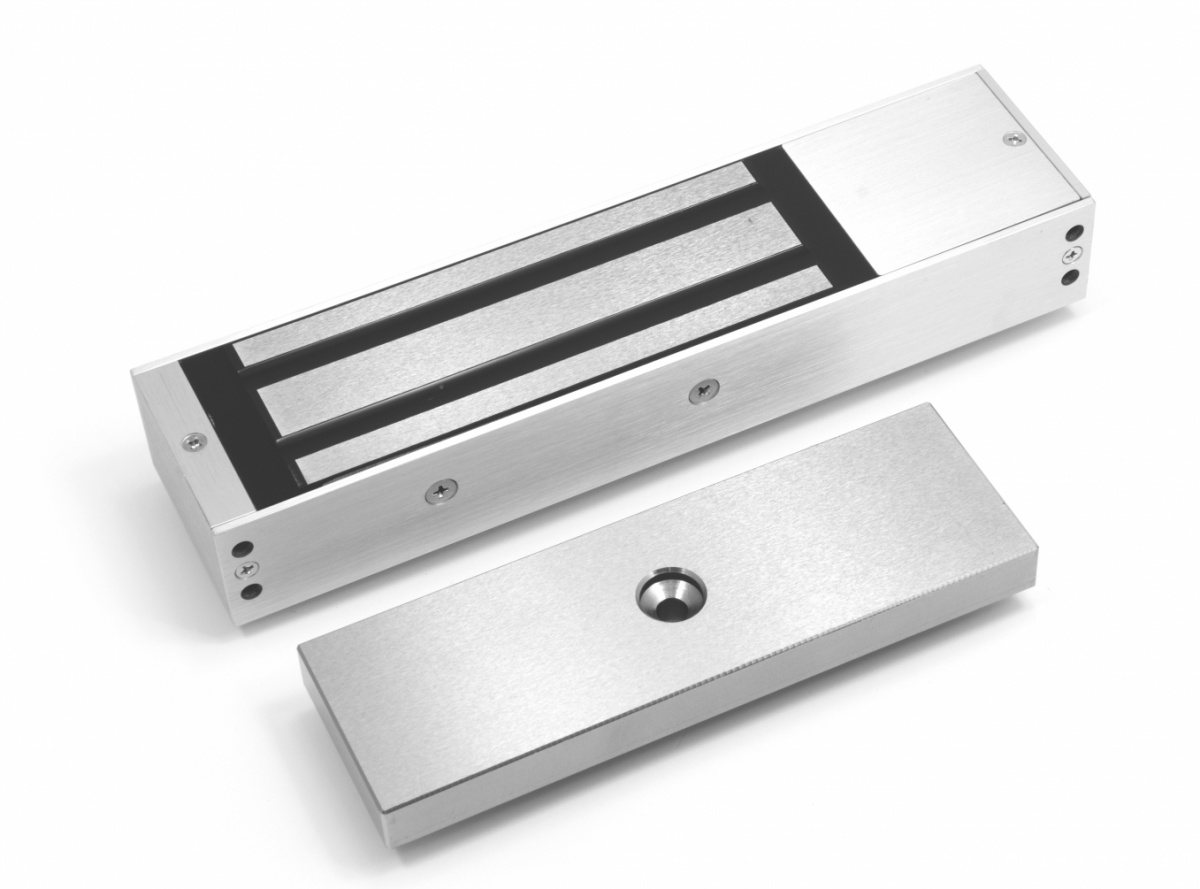

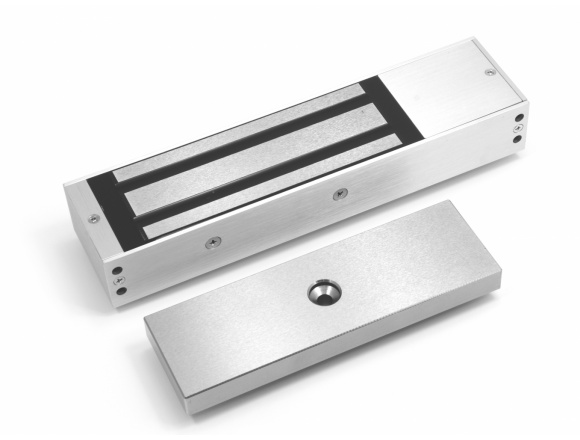

Hartte MG-series for surface mounting

Hartte MG-series for surface mounting
Download product card

Electromagnets MGseries are recommended for access control systems with high level of security due to their holding force level. MG-series have no residual magnetism, which means that when power is switched off, electromagnet is opened without delay and enables immediate opening of the doors.

Characteristic:

  • fail safe (NO)
  • holding force from 60 kg to 500 kg
  • no residual magnetism
  • for surface (S) mounting
  • MOV surge protection built-in
  • resistant to corrosion



Index

MG60S

MG180SR

MG280S

MG280SR

MG350SR

MG500SR

Holding force (N)

600

1800

2800

2800

3500 5000

Voltage (V)

12V DC

12/24 V DC

12/24 V DC

12/24 V DC

12/24 V DC 12/24 V DC

Power consumption (mA)

100

380/190

450/240

450/240

540/270 500/250

Dimmensions (mm)

 80 X 33 X 20

200 X 42 X 21

250 X 49 X 25

250 X 49 X 25

250 X 58 X 29 265 X 75 X 38,8

Weight (kg)

0,5

1,2

2,0

2,0

2,7 4,5

LED

no

yes

no

yes

yes yes

Monitoring

no

yes

yes(chip)

yes

yes yes

Mounting

surface

surface

surface

surface

surface surface
Index Voltage Voltage Current Work type Holding force Functions
  12V 12/24V DC NO 60kg 180kg 280kg 350kg 500kg Monitoring  LED Varistor Waterproof Surface Mortise
MG280MR
MG60
MG180SR
MG280S
MG280SR
MG350SR
MG500SR
MSS180S
MSS280S



Index Description
MG180L Used for MG180SR
MG180ZL Used for MG180SR
MG180U Used for MG180SR (for glass doors)
MG280L Used for MG280S and MG280SR
MG280ZL Used for MG280S and MG280SR
MG280U Used for MG280S and MG280SR (for glass doors)
MG280I Used for MG280S and MG280SR
MG350L Used for MG350SR
MG350ZL Used for MG350SR
MG500L Used for MG500SR
MG500ZL Used for MG500SR



:
