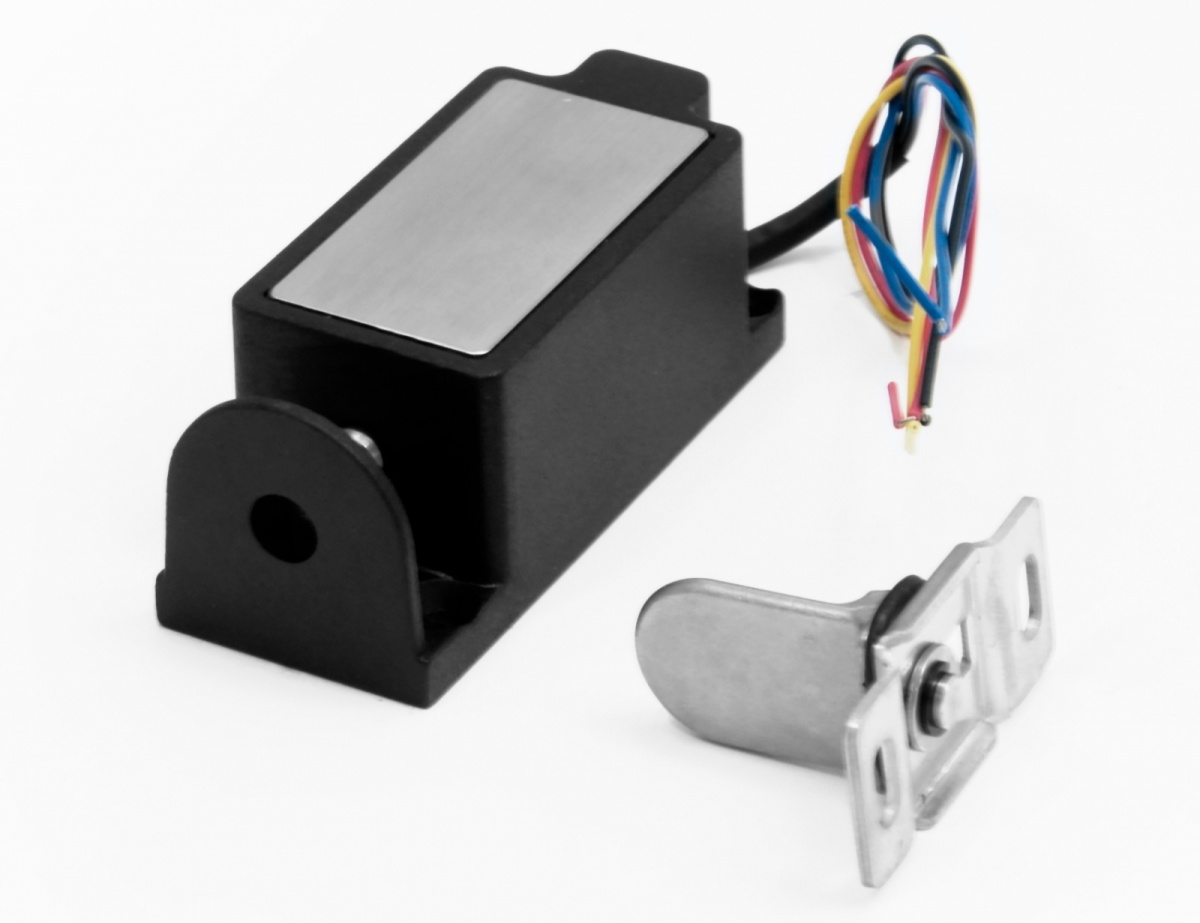

Hartte CBL-series

Hartte CBL-series

The most versatile model of electric lock for lockers, which depending of settings may work in NC mode or NO mode and be powered by 12V or 24V. Electric locks CBL are designed to cooperate with both swing and sliding doors. Recommended to furniture, drawers and lockers made out of HPL, wood and metal. Applied to drawers , server cabinets, swimming pool lockers and employee locker-rooms. Available in option with door status monitoring.

Characteristic:

  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • size of the lock: depth 29mm, width 30mm, height 72,8mm, dimensions of version with door status monitoring - depth 32 mm, width 30mm, height 94mm
  • mechanical strength – break-in resistance 1500 N (150 kg)
  • versatile electric lock for lockers for wide range of applications
  • recommended for furniture, locker-rooms etc. including sliding doors

Index

CBL.S

CBL.M

Work type

NC or NO

NC or NO

Voltage (V)

12/24V DC

12/24V DC

Power consumption AC (mA)

187

200/100

Dimmensions: depth x width x height (mm)

29x30x73

32x30x94

Dimmensions - bolt (mm)

40x19x35

40x19x35

Lock monitoring

nie

tak

Weight (kg)

0,16

0,16

Index Voltage Current Work type Functions Housing
  12V 24V 12/24V AC DC NC NO NC/NO Monitoring
CBL.S             plastic with steel elements
CBL.M           plastic with steel elements
